Neodymium Countersunk Pot Magnet - 32mm x 8mm

Product code: AMFYPA32

$11.35for 1 to 9 items
$8.67buy 10 to 99 itemsand save 23%
$7.79buy 100+ itemsand save 31%

Prices are GST Incl.

Volume pricing available on request

Neodymium Countersunk Pot Magnet - 32mm x 8mm

Rated 5.0 out of 5
Based on 7 reviews
Product Code AMFYPA32
Pull Force* 25 kg
Weight 39 gm
Style Rare earth countersunk pot magnet
Coating Nickel (NiCuNi)
Direction of Magnetisation Axially magnetised through the 8mm
*Measured against up to 10mm mild steel.
Neodymium Countersunk Pot Magnet - 32mm x 8mm

Product Description:

This Rare-Earth Mounting Magnet uses a powerful Rare Earth Magnet within a mild steel casing. The Pot Magnet has a diameter of 32mm and a thickness of 8mm. This Holding Magnet has a countersunk hole with a diameter of 5.5mm. The Neodymium magnets in use power this product to have a super-strong pull force of 25KG for its weight of 39 grams.

This product has a north pole at the countersunk face. If a north-south pair of countersunk holding magnets are required please see AMFYPA16N/S, AMFYPA20N/S or AMFYPA32N/S.


Uses for our Rare Earth countersunk pot magnets:

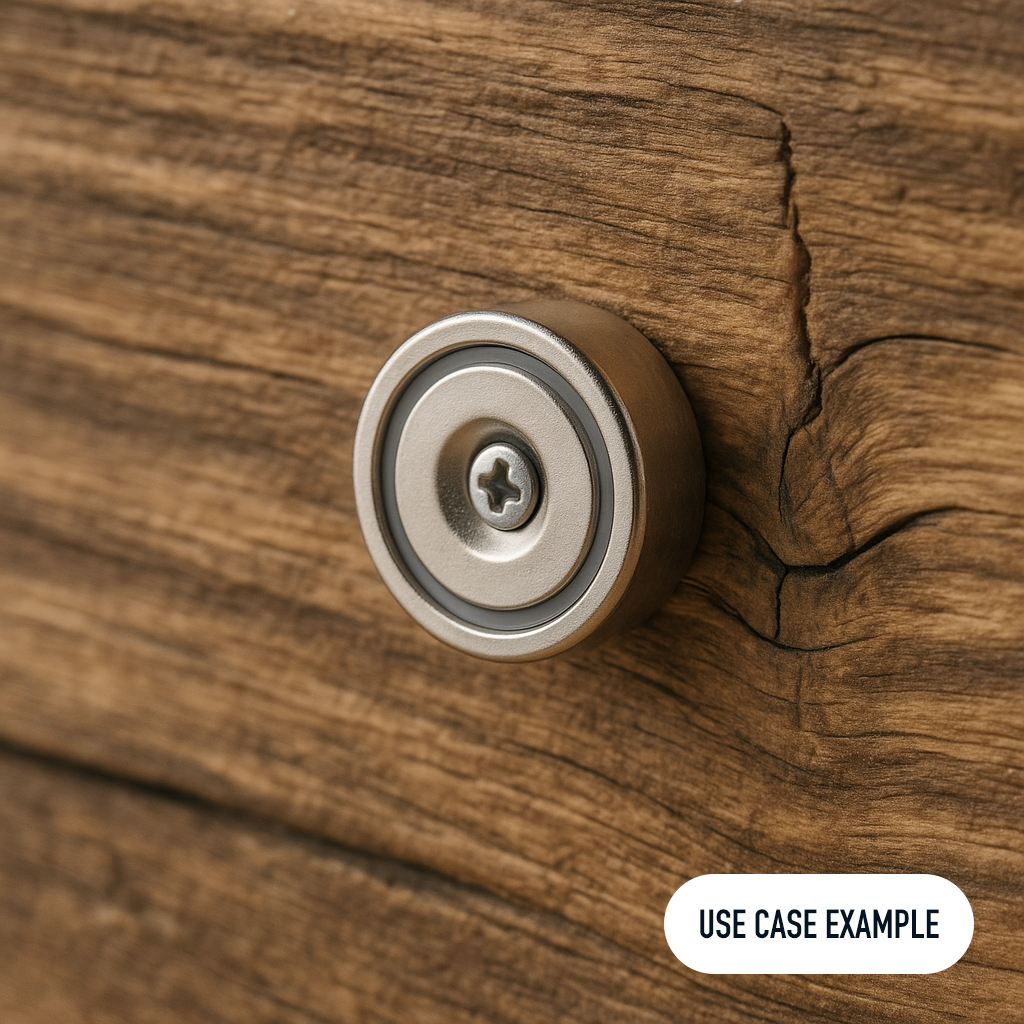

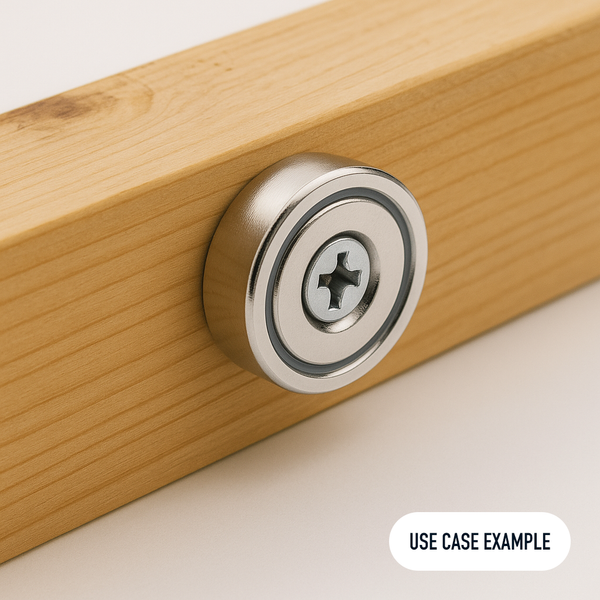

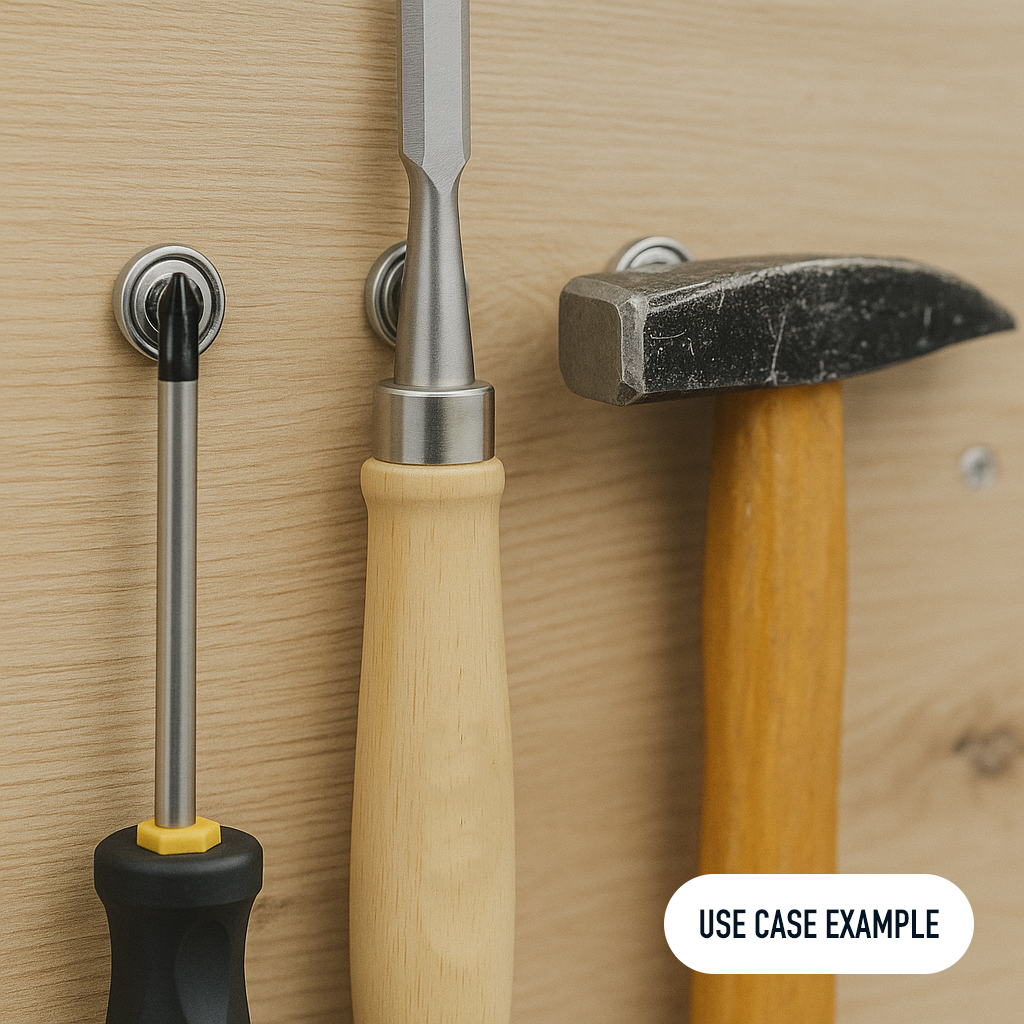

Our 32mm rare earth pot magnets have a countersunk hole and can be used for many industrial purposes. These neodymium pot magnets can be screwed into different objects like shelves and boards at home, in the office, school or warehouse. These pots are able to receive a threaded attachment like a hook or eyelet, making them extremely versatile.

A staple within the builder's tool belt, these 32mm x 8mm Neodymium Pot magnets with Countersunk Hole are ideal for all sorts of building applications. Building designer homes has never been easier with the help of the effortless magic of magnets.

Magnets can be used on the stainless steel used from the balustrading on decks and staircases. As well as on benchtops and appliances in kitchens. These Holding magnets can be used to create secret fixings, soft close drawers, seamless cabinetry and discreet hangings. Low pull force release and re-engagement properties are the hallmarks of the modern builder, empowered by the use of these high-quality magnets.

ModelNo. D1Ø D2Ø H Holding force(kg) Weight (g)
AMFYPA16 16 3.5 6.5 5 5 7
AMFYPA20 20 4.5 8.5 7 6 13
AMFYPA25 25 5.5 10.4 8 14 23
AMFYPA32 32 5.5 10.4 8 25 39
AMFYPA36 36 6.5 12 9 29 52
AMFYPA42 42 6.5 12 9 37 76
AMFYPA48 48 8.5 16 11.5 68 120
AMFYPA60 60 8.5 16 15 112 252
AMFYPA75 75 10.5 19 18 162 488

Neodymium Countersunk Pot Magnet - 32mm x 8mm (AMFYPA32)

Grade
N35 N/A
Max Operating Temperature °C
<=80 N/A
Remanence Br(T)
1.18-1.25 N/A
Remanence Br(kGs)
11.8-12.5>=859 N/A
Coercivity bHc(kA/m)
>=10.8 N/A
Coercivity bHc(Oe)
>=955 N/A
Intrinsic Coercivity iHc(kA/m)
>=12 N/A
Intrinsic Coercivity iHc(Oe)
263-294 N/A
Max Energy Product(BH)max(KJ/m)
33-37 N/A
Grade N35 N/A
Max Operating Temperature °C <=80 N/A
Remanence Br(T) 1.18-1.25 N/A
Remanence Br(kGs) 11.8-12.5>=859 N/A
Coercivity bHc(kA/m) >=10.8 N/A
Coercivity bHc(Oe) >=955 N/A
Intrinsic Coercivity iHc(kA/m) >=12 N/A
Intrinsic Coercivity iHc(Oe) 263-294 N/A
Max Energy Product(BH)max(KJ/m) 33-37 N/A

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
