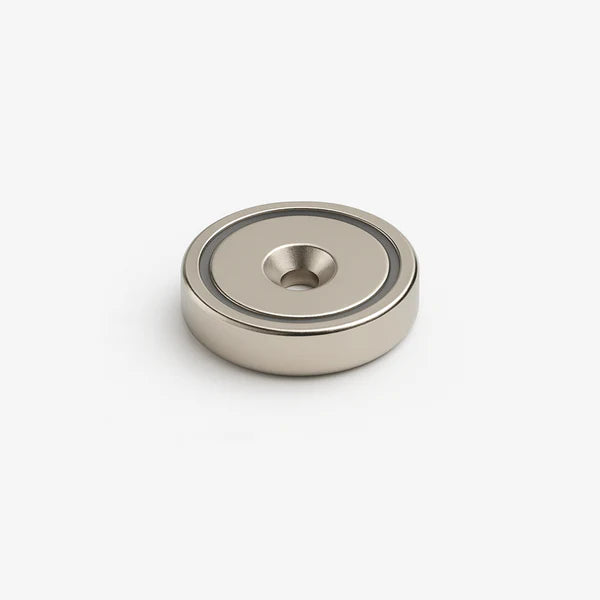

Neodymium Countersunk Pot Magnet - 32mm x 6.65mm (Slim Profile)
Product code: AMFYPA32SLIM
Prices are GST Incl.
Volume pricing available on requestAustralia's Leading Supplier
Shipping Worldwide*
30 Day Returns
Same Day Dispatch*

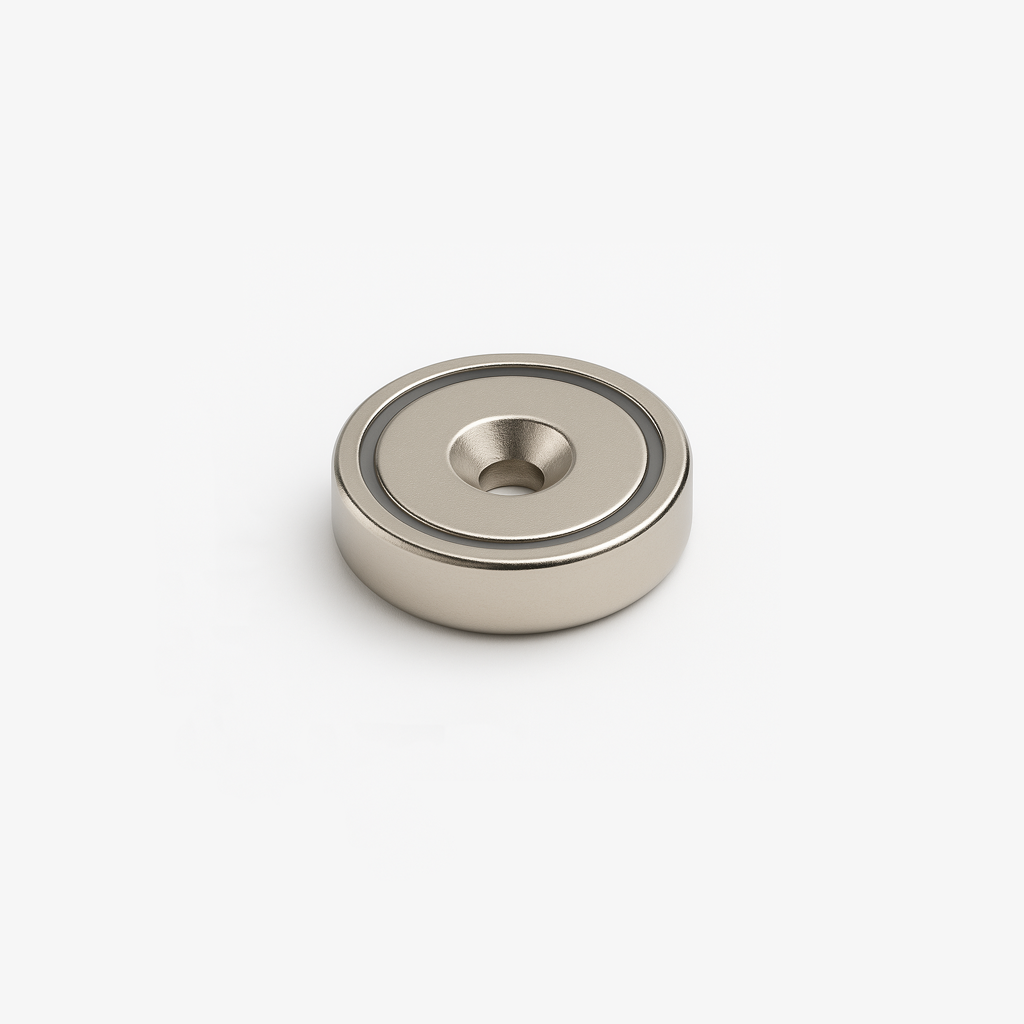

This Neodymium Countersunk Pot Magnet (32mm diameter x 6.65mm height) is a premium heavy-duty mounting magnet offering a powerful 22 kilogram pull force in a compact design. Engineered with a high-grade neodymium disc housed in a protective steel casing, this pot magnet concentrates magnetic force onto the working surface for maximum holding strength. This product is identified by AMF Magnetics product code AMFYPA32SLIM.
The countersunk hole makes installation quick and secure with a flat-head screw, ensuring a flush and reliable fit across a wide variety of applications. With its slim profile and robust strength, this magnet is a trusted choice for both industrial and domestic use.
| SKU | DØ | D1Ø | D2Ø | H | Pull Force (kg) | Weight (g) |
| AMFYPA10 | 10 | 3.7 | 7.4 | 4.5 | 1.4 | 2.2 |
| AMFYPA16 | 16 | 3.5 | 6.5 | 5 | 5 | 7 |
| AMFYPA20 | 20 | 4.5 | 8.5 | 7 | 6 | 13 |
| AMFYPA25 | 25 | 5.5 | 10.4 | 8 | 14 | 23 |
| AMFYPA25SLIM | 25 | 5.5 | 10.4 | 6.65 | 12 | 20 |
| AMFYPA32 | 32 | 5.5 | 10.4 | 8 | 25 | 39 |
| AMFYPA32SLIM | 32 | 5.5 | 10.4 | 6.65 | 22 | 34 |
| AMFYPA36 | 36 | 6.5 | 12 | 9 | 29 | 52 |
| AMFYPA36SLIM | 36 | 6.5 | 12 | 6.7 | 25 | 44 |
| AMFYPA42 | 42 | 6.5 | 12 | 7.9 | 58 | 65 |
| AMFYPA48 | 48 | 8.5 | 16 | 11.5 | 68 | 120 |
| AMFYPA48SLIM | 48 | 8.5 | 16 | 9.35 | 56 | 100 |
| AMFYPA60 | 60 | 8.5 | 16 | 15 | 112 | 252 |
| AMFYPA75 | 75 | 10.5 | 19 | 18 | 162 | 488 |
No FAQ available
NB: Ranges are indicative for product category, please check individual products for specic values within that range.
The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.
Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.
Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
