Great product. Used to hold removable panel in postion.

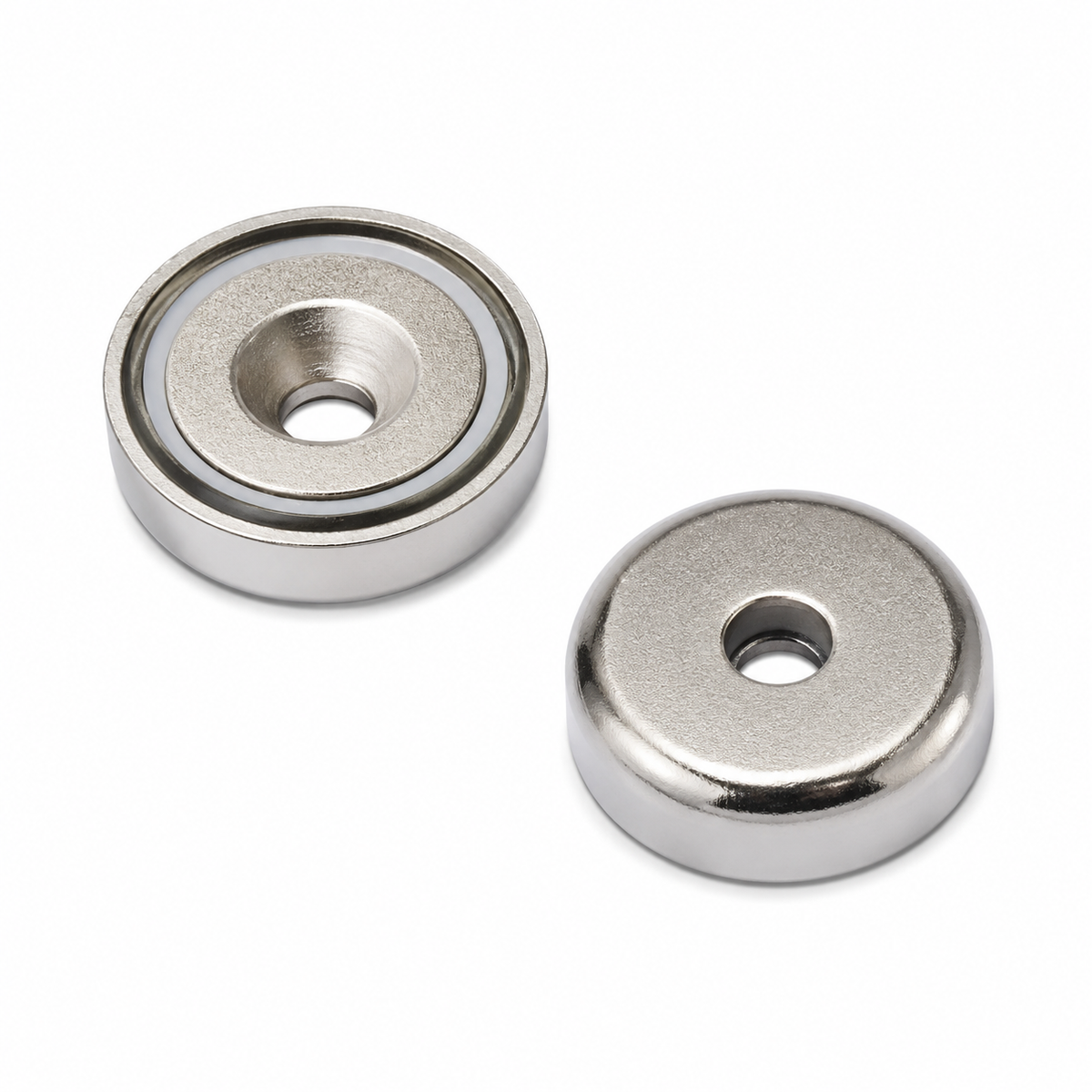

Countersunk Neodymium Pot Magnets - 16mm x 5mm | NORTH SOUTH PAIR
Product code: AMFYPA16N/S
Prices are GST Incl.
Volume pricing available on requestAustralia's Leading Supplier
Shipping Worldwide*
30 Day Returns
Same Day Dispatch*
Magnetic Product Description:
This pair of Rare Earth Pot Magnet have a diameter of 16mm, a countersunk hole diameter of 3.5mm to 6.5mm and a thickness of 5mm. Each pot magnet a pull force of 5kg and a weight of 7 grams, one has a south facing pole and the other has a north facing pole. The steel cap redirects the magnetic flux of one of the magnetic poles to the other side of the magnet, creating a significantly increased holding capacity. It is identified by AMF Magnet part number AMFYPA16N/S.
Uses for our Rare Earth Countersunk Pot Magnets:
Pot Magnets have a steel cap that increases their strength and protects the magnet inside from damage. These paired and countersunk items are designed so their opposing North and South poles attract to each other. This means ferrous material or metallic surfaces are no longer a requirement in the formation of a magnetic bond. These magnets with paired poles make it possible to attract and attach any type of material to any other magnetically, and these materials can include plastic, timber, acrylics and various other non-ferrous items. Countersunk screws will attach the magnets correctly so the poles are opposing and this arrangement means the magnets will attract to each other. Magnetic hold can be released simply and easily when needed and this provides a degree of convenience and also practicality to many applications. Reattaching items with magnetic hold is intuitive, instantaneous and can be repeated again and again with consistency and accuracy. Typical applications include door and drawer closure systems but the ways to use these pole-matched magnets is virtually endless. Neodymium magnets are powerful for their size and provide a significant amount of hold within their relatively small surface areas. This helps disguise their presence inside surfaces and materials and can add an air of mystery to the way items or products attach or appear to be invisibly suspended.
ModelNo. | DØ | D1Ø | D2Ø | H | Holding force(kg) | Weight (g) |
AMFYPA16 | 16 | 3.5 | 6.5 | 5 | 5 | 7 |
AMFYPA20 | 20 | 4.5 | 8.5 | 7 | 6 | 13 |
AMFYPA25 | 25 | 5.5 | 10.4 | 8 | 14 | 23 |
AMFYPA32 | 32 | 5.5 | 10.4 | 8 | 25 | 39 |
AMFYPA36 | 36 | 6.5 | 12 | 9 | 29 | 52 |
AMFYPA42 | 42 | 6.5 | 12 | 9 | 37 | 76 |
AMFYPA48 | 48 | 8.5 | 16 | 11.5 | 68 | 120 |
AMFYPA60 | 60 | 8.5 | 16 | 15 | 112 | 252 |
AMFYPA75 | 75 | 10.5 | 19 | 18 | 162 | 488 |
No FAQ available
NB: Ranges are indicative for product category, please check individual products for specic values within that range.
The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.
Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.
Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
