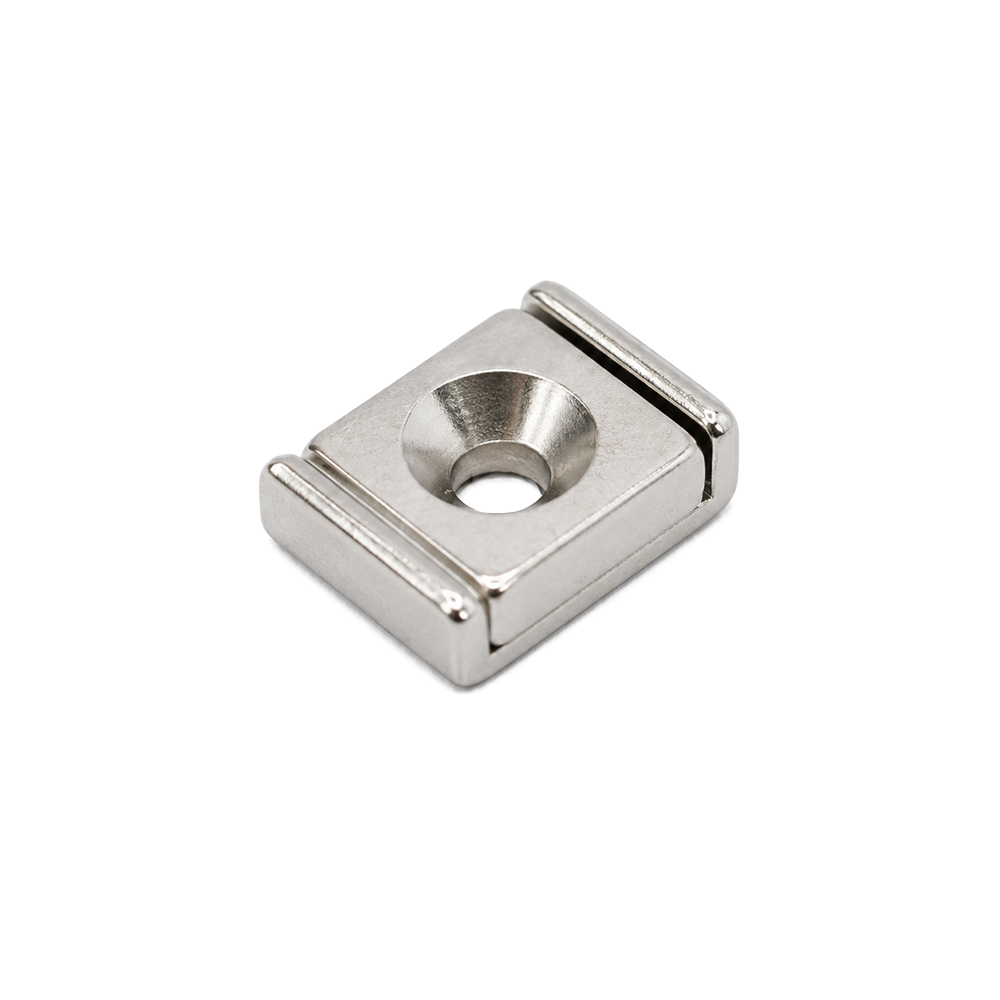

Neodymium Rectangular Pot Magnet with Countersunk Holes - 10mm x 13.5mm

Product code: AMFYPSNi10

$5.12for 1 to 9 items
$4.31buy 10 to 99 itemsand save 15%
$3.44buy 100+ itemsand save 32%

Prices are GST Incl.

Volume pricing available on request

Neodymium Rectangular Pot Magnet with Countersunk Holes - 10mm x 13.5mm

Product Code AMFYPSNi10
Pull Force* 4 kg
Weight 4.5 gm
Style Rare Earth Countersunk Rectangular Pot Magnet
Coating Nickel (NiCuNi)
Dimensions Outside Diameter:6.5mm, Inside Diameter:3.3mm, Width:13.5mm, Height:5mm, Length:10mm
*Measured against up to 10mm mild steel.
Neodymium Rectangular Pot Magnet with Countersunk Holes - 10mm x 13.5mm

Magnetic Product Description:

This rectangular pot magnet has a length of 10mm, a width of 13.5mm, a height of 5mm, a diameter (1) of 3.3mm and diameter (2) of 6.5mm. The length from the center of the hole to the edge of the magnet is 5mm. This magnet has a weight of 4.5g and a pull force of 4kg. It is identified by AMF Product Code AMFYPSNI10.


Uses for our Rare Earth Rectangular Countersunk Pot Magnets:

This rectangular pot magnet is a Neodymium magnet encased inside a chrome plated steel channel. The steel channel increases magnetic strength and also protects the magnet from being damaged during day to day use. This magnet measures 10mm in length, 13.5mm wide, and 5mm in height with a single countersunk hole which has a diameter of 6.5-3.3mm. Both versatile and practical, these rectangular pot magnets have a countersunk hole on their north pole and hold very well against steel surfaces. Magnets are perfect for mounting, home improvement or DIY projects such as making a simple metal tool holding device. These countersunk magnets are also popular as cabinet door or shower door catches.

Product Code L L1 W H D1 D2 Weight Pull Force
AMFYPSNI10 10mm 5mm 13.5mm 5mm 3.3mm 6.5mm 4.5g 4kg
AMFYPSNI20 20mm 10mm 13.5mm 5mm 3.3mm 6.5mm 9.2g 8kg
AMFYPSNI40 40mm 30mm 13.5mm 5mm 3.3mm 6.5mm 18.4g 17kg
AMFYPSNI60 60mm 50mm 13.5mm 5mm 3.3mm 6.5mm 27.9g 30kg
AMFYPSNI80 80mm 70mm 13.5mm 5mm 3.3mm 6.5mm 37.8g 33kg

Neodymium Rectangular Pot Magnet with Countersunk Holes - 10mm x 13.5mm (AMFYPSNi10)

Grade
N35 N/A
Max Operating Temperature °C
<=80 N/A
Remanence Br(T)
1.18-1.25 N/A
Remanence Br(kGs)
11.8-12.5>=859 N/A
Coercivity bHc(kA/m)
>=10.8 N/A
Coercivity bHc(Oe)
>=955 N/A
Intrinsic Coercivity iHc(kA/m)
>=12 N/A
Intrinsic Coercivity iHc(Oe)
263-294 N/A
Max Energy Product(BH)max(KJ/m)
33-37 N/A
Grade N35 N/A
Max Operating Temperature °C <=80 N/A
Remanence Br(T) 1.18-1.25 N/A
Remanence Br(kGs) 11.8-12.5>=859 N/A
Coercivity bHc(kA/m) >=10.8 N/A
Coercivity bHc(Oe) >=955 N/A
Intrinsic Coercivity iHc(kA/m) >=12 N/A
Intrinsic Coercivity iHc(Oe) 263-294 N/A
Max Energy Product(BH)max(KJ/m) 33-37 N/A

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.

Neodymium Rectangular Pot Magnet with Countersunk Holes - 10mm x 13.5mm

Magnetic Product Description:

This rectangular pot magnet has a length of 10mm, a width of 13.5mm, a height of 5mm, a diameter (1) of 3.3mm and diameter (2) of 6.5mm. The length from the center of the hole to the edge of the magnet is 5mm. This magnet has a weight of 4.5g and a pull force of 4kg. It is identified by AMF Product Code AMFYPSNI10.


Uses for our Rare Earth Rectangular Countersunk Pot Magnets:

This rectangular pot magnet is a Neodymium magnet encased inside a chrome plated steel channel. The steel channel increases magnetic strength and also protects the magnet from being damaged during day to day use. This magnet measures 10mm in length, 13.5mm wide, and 5mm in height with a single countersunk hole which has a diameter of 6.5-3.3mm. Both versatile and practical, these rectangular pot magnets have a countersunk hole on their north pole and hold very well against steel surfaces. Magnets are perfect for mounting, home improvement or DIY projects such as making a simple metal tool holding device. These countersunk magnets are also popular as cabinet door or shower door catches.

Product Code L L1 W H D1 D2 Weight Pull Force
AMFYPSNI10 10mm 5mm 13.5mm 5mm 3.3mm 6.5mm 4.5g 4kg
AMFYPSNI20 20mm 10mm 13.5mm 5mm 3.3mm 6.5mm 9.2g 8kg
AMFYPSNI40 40mm 30mm 13.5mm 5mm 3.3mm 6.5mm 18.4g 17kg
AMFYPSNI60 60mm 50mm 13.5mm 5mm 3.3mm 6.5mm 27.9g 30kg
AMFYPSNI80 80mm 70mm 13.5mm 5mm 3.3mm 6.5mm 37.8g 33kg

Neodymium Rectangular Pot Magnet with Countersunk Holes - 10mm x 13.5mm (AMFYPSNi10)

Grade
N35 N/A
Max Operating Temperature °C
<=80 N/A
Remanence Br(T)
1.18-1.25 N/A
Remanence Br(kGs)
11.8-12.5>=859 N/A
Coercivity bHc(kA/m)
>=10.8 N/A
Coercivity bHc(Oe)
>=955 N/A
Intrinsic Coercivity iHc(kA/m)
>=12 N/A
Intrinsic Coercivity iHc(Oe)
263-294 N/A
Max Energy Product(BH)max(KJ/m)
33-37 N/A
Grade N35 N/A
Max Operating Temperature °C <=80 N/A
Remanence Br(T) 1.18-1.25 N/A
Remanence Br(kGs) 11.8-12.5>=859 N/A
Coercivity bHc(kA/m) >=10.8 N/A
Coercivity bHc(Oe) >=955 N/A
Intrinsic Coercivity iHc(kA/m) >=12 N/A
Intrinsic Coercivity iHc(Oe) 263-294 N/A
Max Energy Product(BH)max(KJ/m) 33-37 N/A

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
