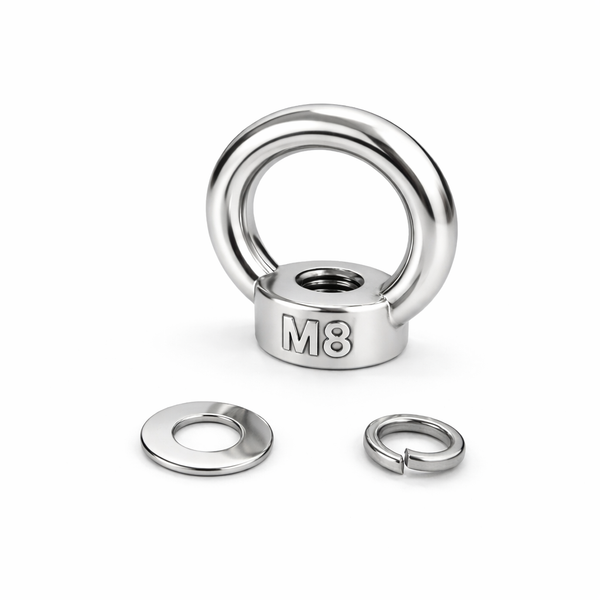

M8 Stainless Steel (304) Eyebolt with Washer and Spring Gasket (Non-Magnetic)
Product code: Eyebolt/M8
Earn 6 points for this product with AMF Magnetics Perks
Prices are GST Incl.
Request a Quote for Bulk OrdersAustralia's Leading Supplier
Shipping Worldwide*
30 Day Returns
Same Day Dispatch*
M8 Stainless Steel (304) Eyebolt with Washer and Spring Gasket (Non-Magnetic)
This M8 stainless steel eyebolt is a versatile fastening and suspension solution designed for durability, corrosion resistance, and reliable performance. Manufactured from 304 grade stainless steel, this eyebolt offers excellent resistance to rust and oxidation.
This set includes the M5 eyebolt, washer, and spring gasket, ensuring a secure fit and reduced loosening from vibration.
This eyebolt is fully compatible with M8 male thread pot magnets, allowing you to quickly convert a threaded magnetic base into a reliable hanging or attachment point. It’s an ideal accessory for magnetic hook alternatives, suspended signage, cable management, lighting, and workshop setups.
Specifications:
| SKU |
D (mm) |
d (mm) |
d1 (mm) |
H (mm) |
M Thread |
Weight (g) |
|
Eyebolt/M5 |
11 |
22.5 |
12 |
23 |
M5 |
9.8 |
|
Eyebolt/M6 |
14.5 |
27 |
15.5 |
29 |
M6 |
18.5 |
|
Eyebolt/M8 |
18.5 |
34.5 |
19.5 |
34 |
M8 |
36 |
Key Features:
Thread Size: M8
Material: 304 stainless steel
Corrosion-resistant for long-lasting performance
Includes washer and spring gasket for secure installation
Compatible with M8 male thread pot magnets
Strong, reliable fastening point for lifting, tying, or suspending items
Common Applications
Pairing with M8 male thread pot magnets for hanging solutions.
Magnetic assemblies requiring non-magnetic hardware.
Electronics, laboratory, and precision equipment.
Light-duty lifting and suspension points.
Signage, displays, and hanging fixtures.
Marine, workshop, and general hardware use.
This M8 stainless steel eyebolt assembly provides a clean, corrosion-resistant, and non-magnetic fastening solution for a wide range of industrial, commercial, and DIY applications, especially when used with M8 male thread pot magnets to create quick, removable hanging points.
No FAQ available
NB: Ranges are indicative for product category, please check individual products for specic values within that range.
The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.
Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.
Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
