I'm hooked 😁
Very handy for hanging small stuff around the house, like lanterns during a recent power outage .
Will look at more in the future 😉
Product code: PMYP-E16WH
Prices are GST Incl.
Volume pricing available on requestAustralia's Leading Supplier
Shipping Worldwide*
30 Day Returns
Same Day Dispatch*

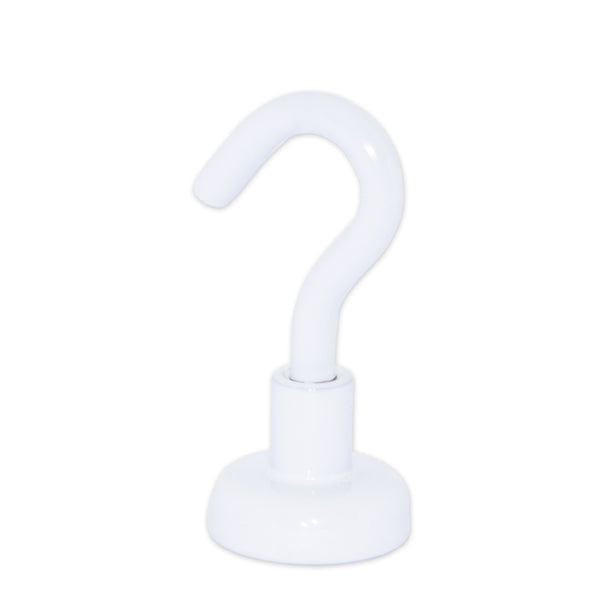

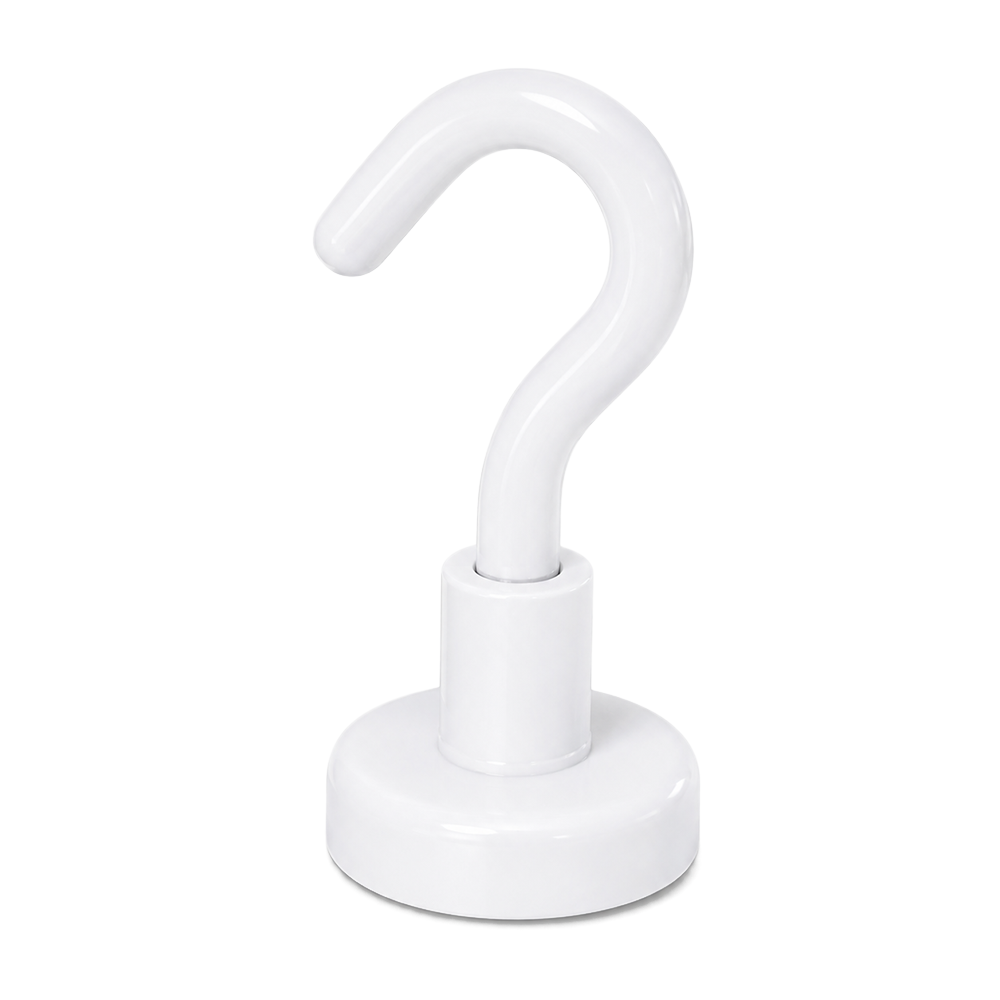

This multi-purpose hook magnet has a total base diameter of 16mm, and a height of 37mm, with a hook opening of 8mm. This product is identified by AMF Magnetics Part Number PMYP-E16WH.
.
With an approximate holding force of 5.5 kilograms when hung vertically and 1.8 kilograms when hung horizontally, these small hook magnets are ideal to hold artwork or souvenirs or any other holding application where a sturdy holding force is required. Some applications include, suspending and adhering items to whiteboards, office signage, displaying arts and crafts, organising keys and other frequently used items.
To learn more about how to use this product, watch the latest video on our Youtube Channel
No FAQ available
NB: Ranges are indicative for product category, please check individual products for specic values within that range.
The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.
Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.
Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
The Pull Force listed for each magnet is based on lifting 10mm thick steel from a horizontal surface. Magnets on a vertical surface (of 10mm thick steel) are generally able to hold around only 30% of the pull force listed in the product description. This is due to the effects of gravity and the lack of friction between the surface and the shiny magnet. Read More
