Neodymium Pot Magnet with Round Hole - 36mm x 6.5mm (Slim Profile)
Product code: AMFYPB36SLIM
Prices are GST Incl.
Volume pricing available on requestAustralia's Leading Supplier
Shipping Worldwide*
30 Day Returns
Same Day Dispatch*

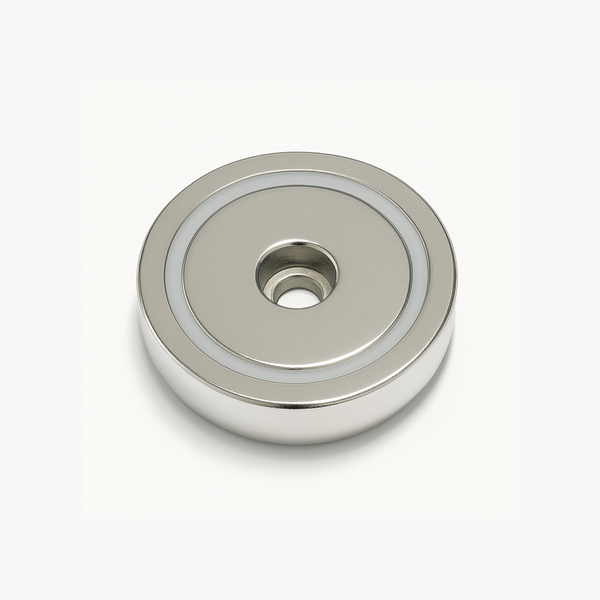

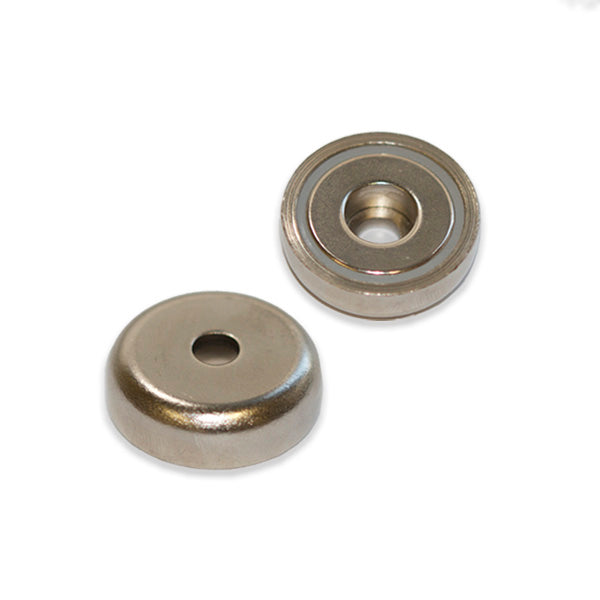

This Neodymium Pot Magnet with Round Hole (36mm diameter x 6.5mm height) is a compact yet powerful rare earth magnet designed for secure fastening and mounting applications. Featuring a 20kg pull force, this magnet delivers exceptional holding strength while maintaining a slim profile, making it ideal for industrial, commercial, and everyday use. This product is identified by AMF Magnetics product code AMFYPB36SLIM.
The round hole design allows for easy fixing with a bolt, rivet, or custom fastener, offering flexibility in applications where a standard countersunk magnet may not be suitable. Encased in a nickel-plated steel cup, the magnet’s power is significantly enhanced as the steel directs the magnetic field to the working face, ensuring maximum performance.
Key Features:
-
Size: 36mm diameter x 6.5mm height
-
Pull Force: 20kg (tested against 10mm mild steel surface)
-
Design: Central round hole for secure bolt or fastener fixing
-
Material: High-strength neodymium magnet encased in a steel pot
-
Finish: Nickel coating for durability and corrosion resistance
Common Applications:
-
Industrial clamping and fastening
-
Signage and display mounting
-
Shopfitting and retail fixtures
-
Workshop and tool organisation
-
DIY, office, and home improvement projects
The 36mm Neodymium Pot Magnet with Round Hole combines strength, versatility, and ease of installation, making it a reliable solution for engineers, tradespeople, manufacturers, and hobbyists alike.
Please allow tolerances of up to 2.5mm in thickness for this product. Contact our office for critical dimensions.
| ModelNo. | DØ | D1Ø | D2Ø | H | Holding force(kg) | Weight (g) |
| AMFYPB16 | 16 | 3.5 | 6.5 | 5 | 4 | 6 |
| AMFYPB20 | 20 | 4.5 | 8 | 7 | 6 | 12 |
| AMFYPB25 | 25 | 5.5 | 9 | 8 | 14 | 23 |
| AMFYPB32 | 32 | 5.5 | 9 | 8 | 23 | 36 |
| AMFYPB36 | 36 | 6.5 | 11 | 9 | 29 | 50 |
| AMFYPB42 | 42 | 6.5 | 11 | 9 | 32 | 73 |
| AMFYPB48 | 48 | 8.5 | 15 | 11.5 | 63 | 114 |
| AMFYPB60 | 60 | 8.5 | 15 | 15 | 95 | 240 |
| AMFYPB75 | 75 | 10.5 | 18 | 18 | 155 | 471 |
No FAQ available
NB: Ranges are indicative for product category, please check individual products for specic values within that range.
The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.
Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.
Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
