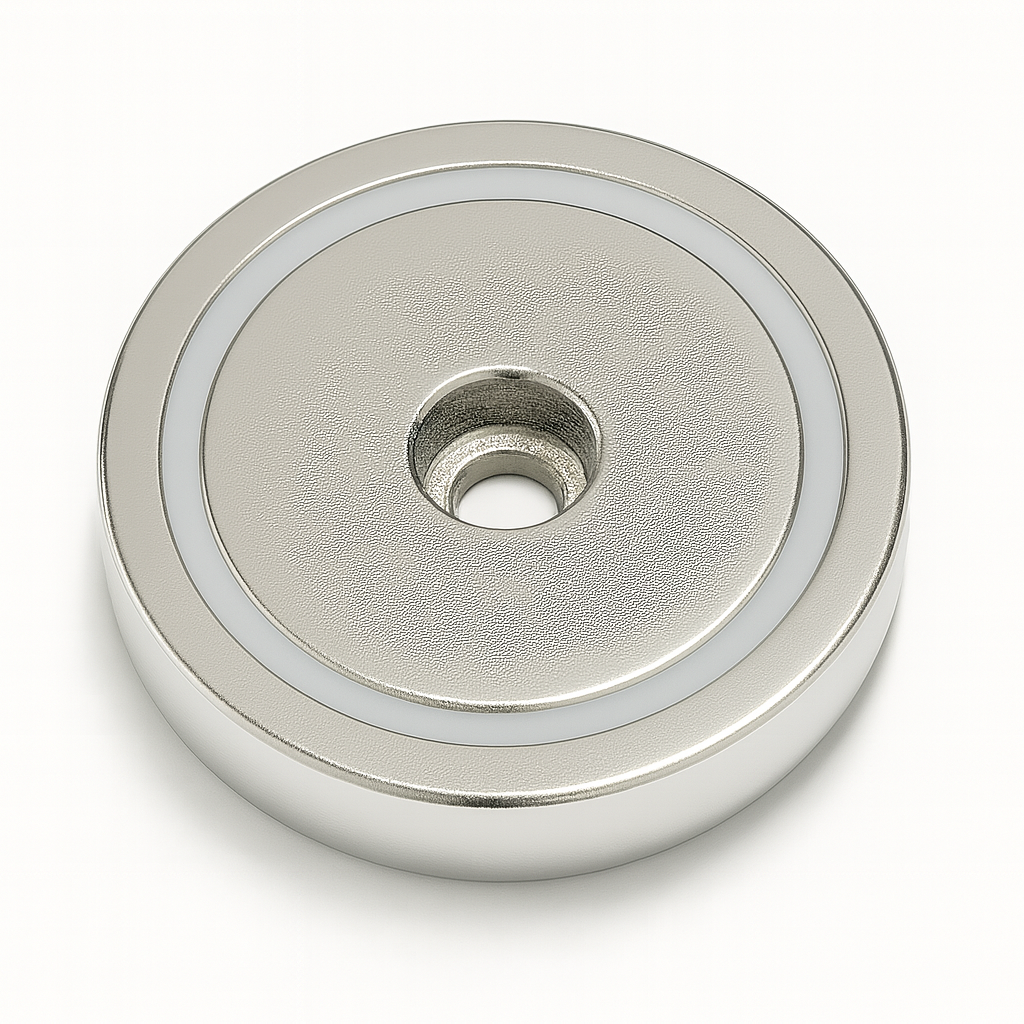

Neodymium Pot Magnet with Round Hole - 60mm x 14mm (Slim Profile)
Product code: AMFYPB60SLIM
Prices are GST Incl.
Request a Quote for Bulk OrdersAustralia's Leading Supplier
20 Day Returns Policy
ISO 9001 and HACCP Certified
This Neodymium Pot Magnet with Round Hole (60mm diameter x 14mm thick) is one of the most powerful fastening solutions available, engineered to deliver an incredible pull force of 90 kilograms. Designed with a central round hole, it allows for quick and secure mounting using bolts or screws, making it a versatile choice for heavy-duty applications. This product is identified by product code AMFYPB60SLIM.
Encased in a protective steel pot housing, the magnet’s performance is amplified while also shielding the brittle neodymium core from impact and chipping. This ensures maximum magnetic strength and long-term durability, even under demanding industrial conditions.
Perfect for use in engineering, construction, metal fabrication, signage, workshop fixtures, and industrial assembly, this magnet provides unmatched holding power in a compact design. Its through-hole design makes it easy to integrate into jigs, mounts, and fixtures where strength and reliability are critical.
Key Features:
-
Dimensions: 60mm diameter x 14mm thickness
-
Central round hole for simple and secure attachment
-
Pull Force: 90kg – extreme holding strength
-
Made from high-performance Neodymium (Rare Earth) N38
-
Encased in a protective steel pot for enhanced durability
-
Suitable for industrial, commercial, and heavy-duty applications
Please allow tolerances of up to 2.5mm in thickness for this product. Contact our office for critical dimensions.
| ModelNo. | DØ | D1Ø | D2Ø | H | Holding force(kg) | Weight (g) |
| AMFYPB16 | 16 | 3.5 | 6.5 | 5 | 4 | 6 |
| AMFYPB20 | 20 | 4.5 | 8 | 7 | 6 | 12 |
| AMFYPB25 | 25 | 5.5 | 9 | 8 | 14 | 23 |
| AMFYPB32 | 32 | 5.5 | 9 | 8 | 23 | 36 |
| AMFYPB36 | 36 | 6.5 | 11 | 9 | 29 | 50 |
| AMFYPB42 | 42 | 6.5 | 11 | 9 | 32 | 73 |
| AMFYPB48 | 48 | 8.5 | 15 | 11.5 | 63 | 114 |
| AMFYPB60 | 60 | 8.5 | 15 | 15 | 95 | 240 |
| AMFYPB75 | 75 | 10.5 | 18 | 18 | 155 | 471 |
No FAQ available
NB: Ranges are indicative for product category, please check individual products for specic values within that range.
The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.
Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.
Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
