Female Thread Neodymium Pot Magnet - Diameter 25mm x 15.8mm (Slim Profile)
Product code: AMFYPD25SLIM
Earn 7 points for this product with AMF Magnetics Perks
Prices are GST Incl.
Volume pricing available on requestAustralia's Leading Supplier
Shipping Worldwide*
30 Day Returns
Same Day Dispatch*

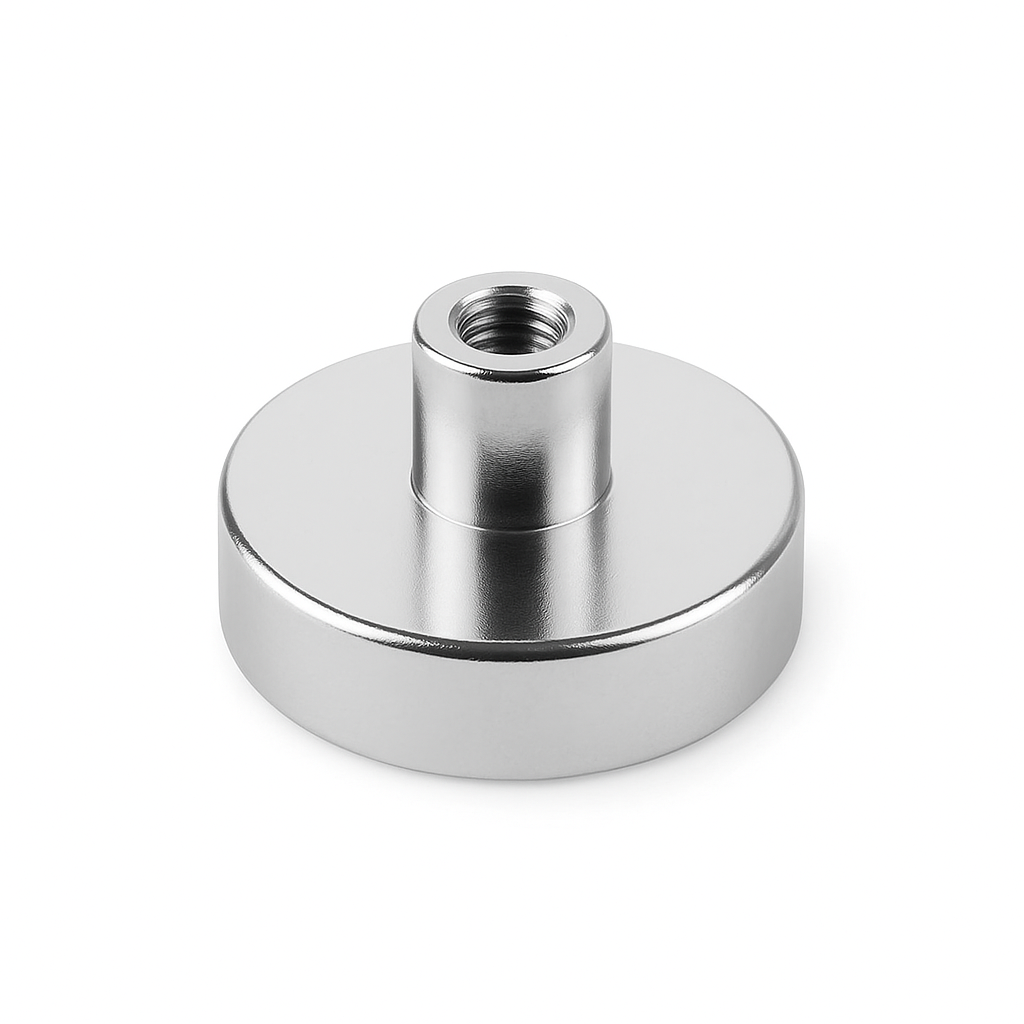

This Female Thread Neodymium Pot Magnet (25mm diameter x 15.8mm height) is a compact yet powerful fastening solution designed for versatility and strength. Featuring a precisely machined female threaded bushing, this magnet allows for quick and secure attachment to bolts, hooks, eyelets, or other threaded components, making it highly adaptable for both industrial and commercial applications. This product is identified by product code AMFYPD25SLIM.
With a pull force of 19 kilograms, this rare earth pot magnet offers exceptional holding strength while maintaining a manageable size. Its steel pot housing not only amplifies the magnetic pull on the active surface but also protects the neodymium core from impact and chipping, ensuring durability in demanding environments.
Ideal for use in retail displays, lighting fixtures, signage, workshop tools, jigs, and mounting applications, this threaded pot magnet combines strength, reliability, and convenience.
Key Features:
-
Dimensions: 25mm diameter x 15.8mm height
-
Female threaded bushing for easy attachment
-
Pull Force: 19kg – strong holding capacity for its size
-
High-performance Neodymium (Rare Earth) N38 magnet
-
Durable steel casing boosts performance and protects the magnet
-
Perfect for industrial, retail, and DIY applications
| ModelNo. | DØ | D1Ø | M | H | h | Holding force(kg) | Weight (g) |
| AMFYPD10 | 10 | 5.5 | 3 | 12 | 5 | 2.2 | 3.5 |
| AMFYPD12 | 12 | 6 | 3 | 13 | 5 | 3.2 | 5 |
| AMFYPD16 | 16 | 6 | 4 | 13 | 5 | 5.5 | 8 |
| AMFYPD20 | 20 | 8 | 4 | 15 | 7 | 9 | 17 |
| AMFYPD25 | 25 | 10 |
5 | 17 | 8 |
22 | 32 |
| AMFYPD32 | 32 | 10 | 6 | 18 | 8 | 34 | 47 |
| AMFYPD36 | 36 | 10 | 6 | 18 | 8 | 41 | 59 |
| AMFYPD42 | 42 | 10 | 6 | 20 | 9 | 68 | 87 |
| AMFYPD48 | 48 | 12 | 8 | 24 | 11.5 | 81 | 132 |
| AMFYPD60 | 60 | 14 | 8 | 30 | 15 | 113 | 270 |
| AMFYPD75 | 75 | 16 | 10 | 34 | 18 | 164 | 552 |
No FAQ available
NB: Ranges are indicative for product category, please check individual products for specic values within that range.
The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.
Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.
Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
