Neodymium Disc Magnet - 10mm x 5mm | N48

Product code: D-D10H5-N48

for 1 to 9 items
$3.20buy 10 to 99 itemsand save 15%
$2.70buy 100+ itemsand save 28%

Prices are GST Incl.

Volume pricing available on request

Australia's Leading Supplier

Shipping Worldwide*

30 Day Returns

Same Day Dispatch*

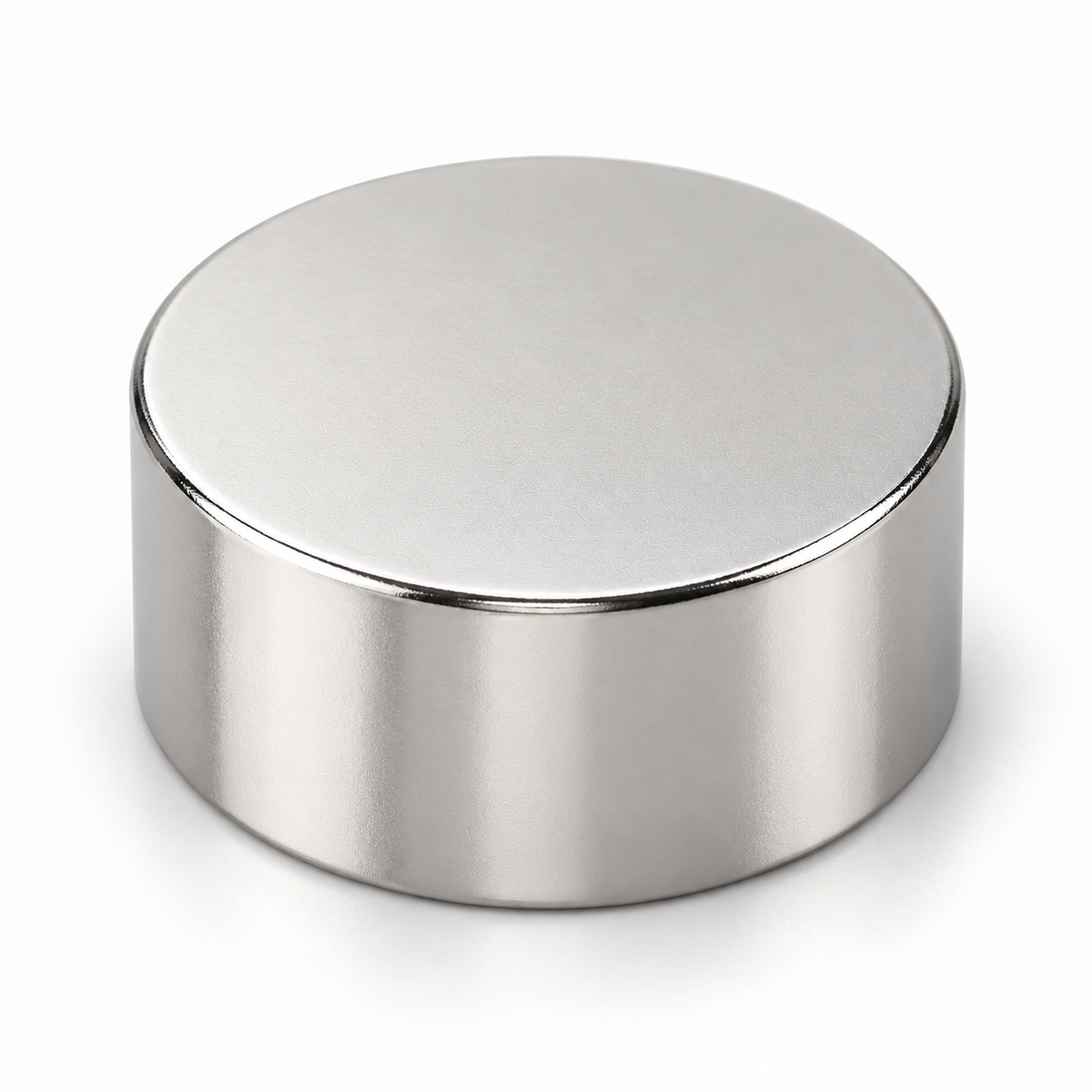

Neodymium Disc Magnet - 10mm x 5mm | N48

Product Code D-D10H5-N48
Pull Force* 3.3 kg
Weight 1 gm
Style Rare Earth Disc magnet
Gauss 5020
Grade N48
Coating Nickel (NiCuNi)
Direction of Magnetisation Axially magnetised
Dimensions Height:5mm, Diameter:10mm
*Measured against up to 10mm mild steel.
Neodymium Disc Magnet - 10mm x 5mm | N48

Magnetic Product Description:

This rare earth disc has a diameter of 10mm and a height of 5mm. It has a pull force of 3.3kg. It is identified by the AMF magnet part number D-D10H5-N48.

Uses for our rare earth disc magnets:

Neodymium Discs, like this one, with an N48  grade magnetisation, are ideal for applications where high magnetic strength is required within a small or restricted space. Examples of this include security and alarm systems, telecommunications equipment, or anything else that is sensor-based and needs a high degree of precision and accuracy. The diameter is 10mm and the height is 5mm with an impressive pull force of 3.3kg! Other Neodymium magnets of the same size with a lesser grade would have lesser holding ability. The versatility of these products means they are used in a wide variety of applications that encompasses the engineering and construction industries, as well as the product design and retail display sectors.

No FAQ available

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
