Neodymium Disc Magnet - 6mm x 1.5mm | N45
Product code: D-D6H1.5-N45
Prices are GST Incl.
Volume pricing available on requestAustralia's Leading Supplier
Shipping Worldwide*
30 Day Returns
Same Day Dispatch*
Neodymium Disc Magnet - 6mm x 1.5mm | N45
Magnetic Product Description:

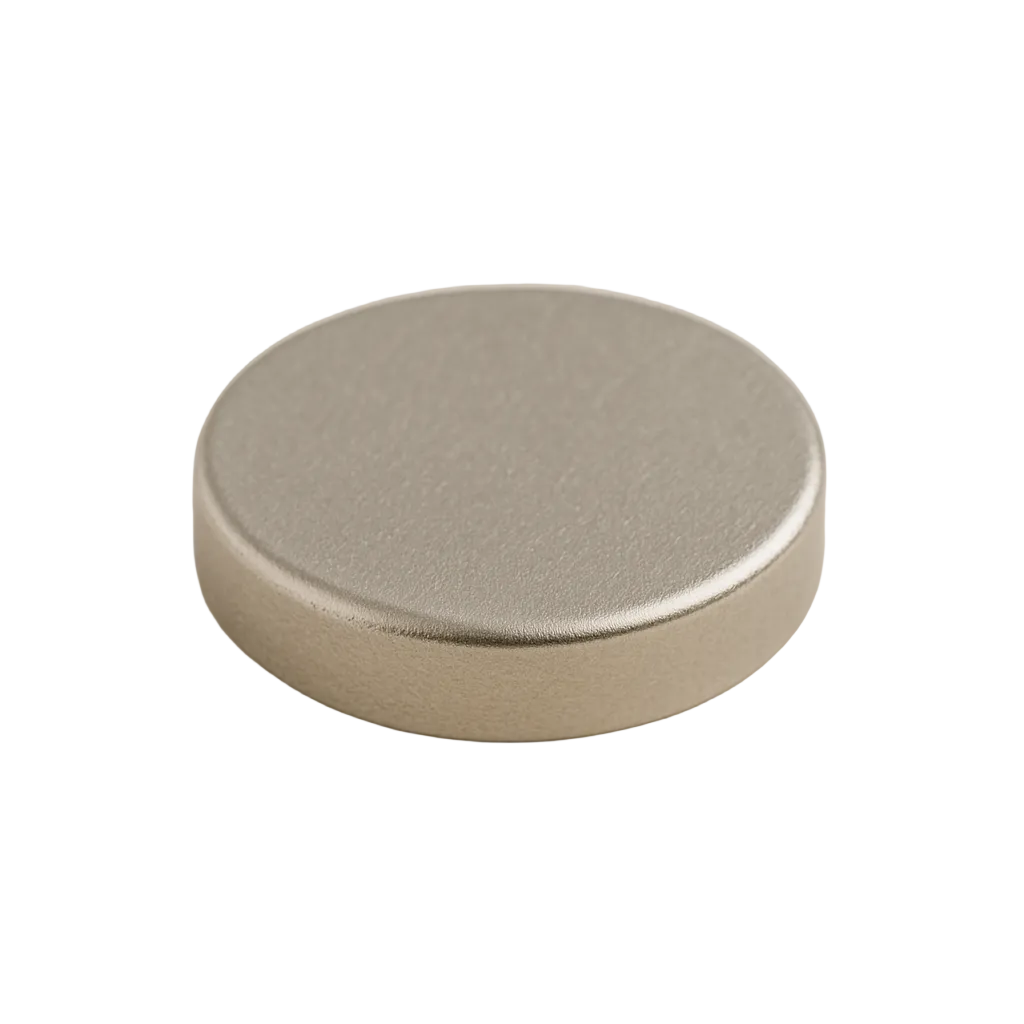

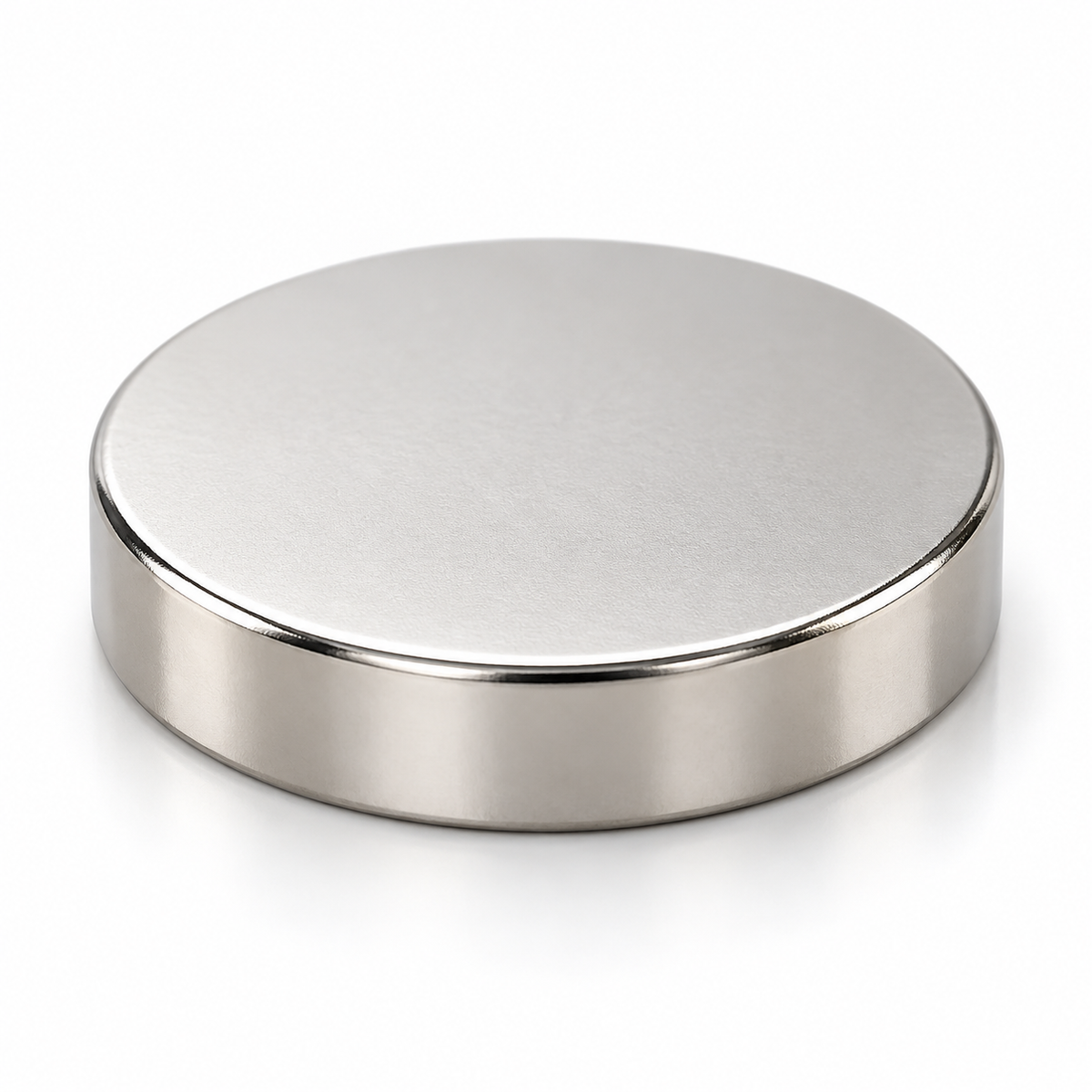

This neodymium magnetic disc has a diameter of 6mm and a height of 1.5mm. It has a magnetic flux reading of 3063 Gauss and a pull force of 494 grams. It is identified by the AMF magnet part number D-D6H1.5-N45.
Uses for our rare earth disc magnets:
Neodymium disc magnets come in a wide range of diameters and thicknesses, from industrial scale down to mini magnets such as these. Small magnets are common components in many electronic devices including electric motors, communication equipment and security systems to name just a few. Tiny round magnets are also very popular as craft magnets as they are lightweight and surprisingly powerful. Made from strong neodymium magnetic material, they are the strongest type of permanent magnets available. Standard fridge magnets are generally made with Ferrite magnets which are far weaker and require more magnetic material to achieve a similar hold to these rare earth disc magnets.
No FAQ available
NB: Ranges are indicative for product category, please check individual products for specic values within that range.
The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.
Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.
Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
