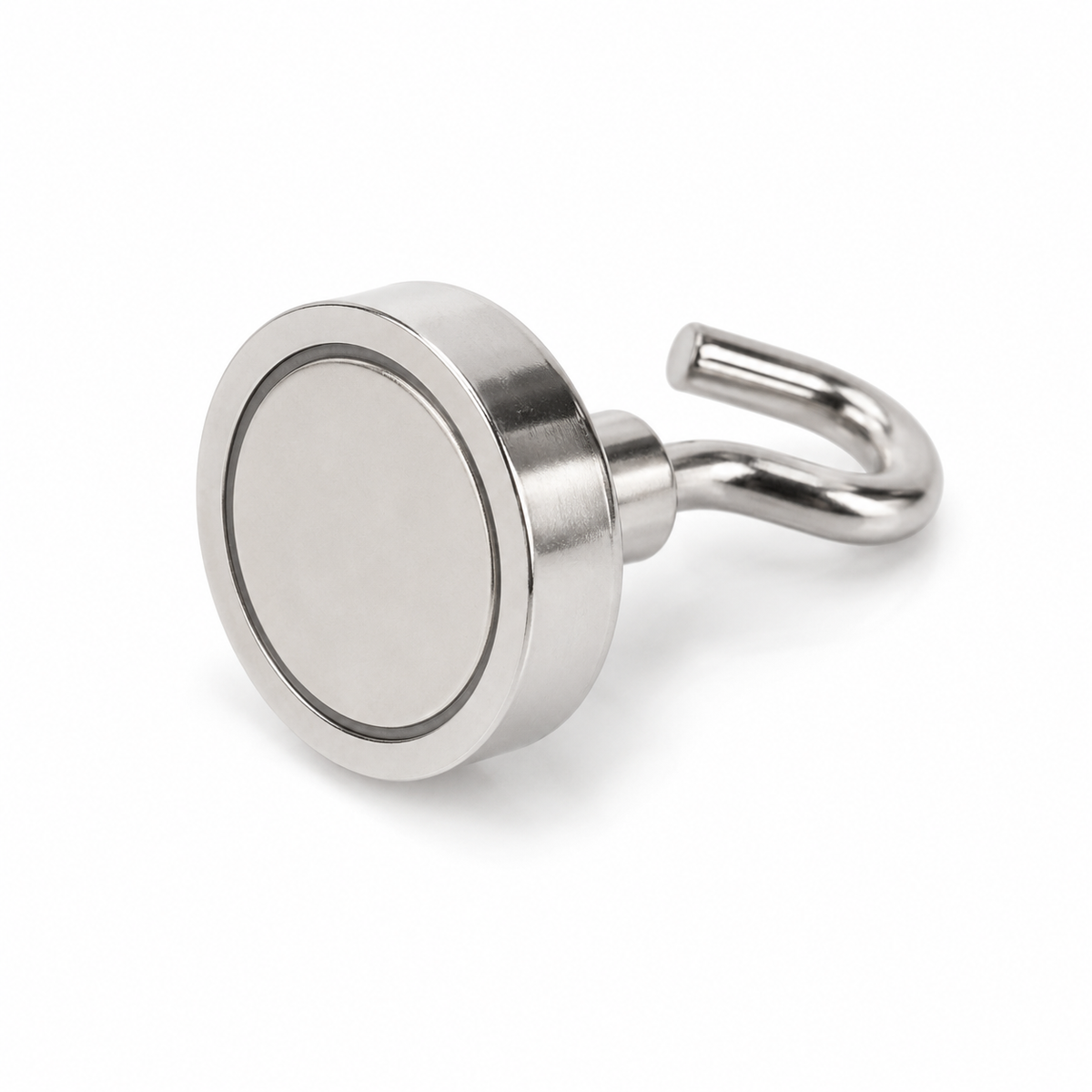

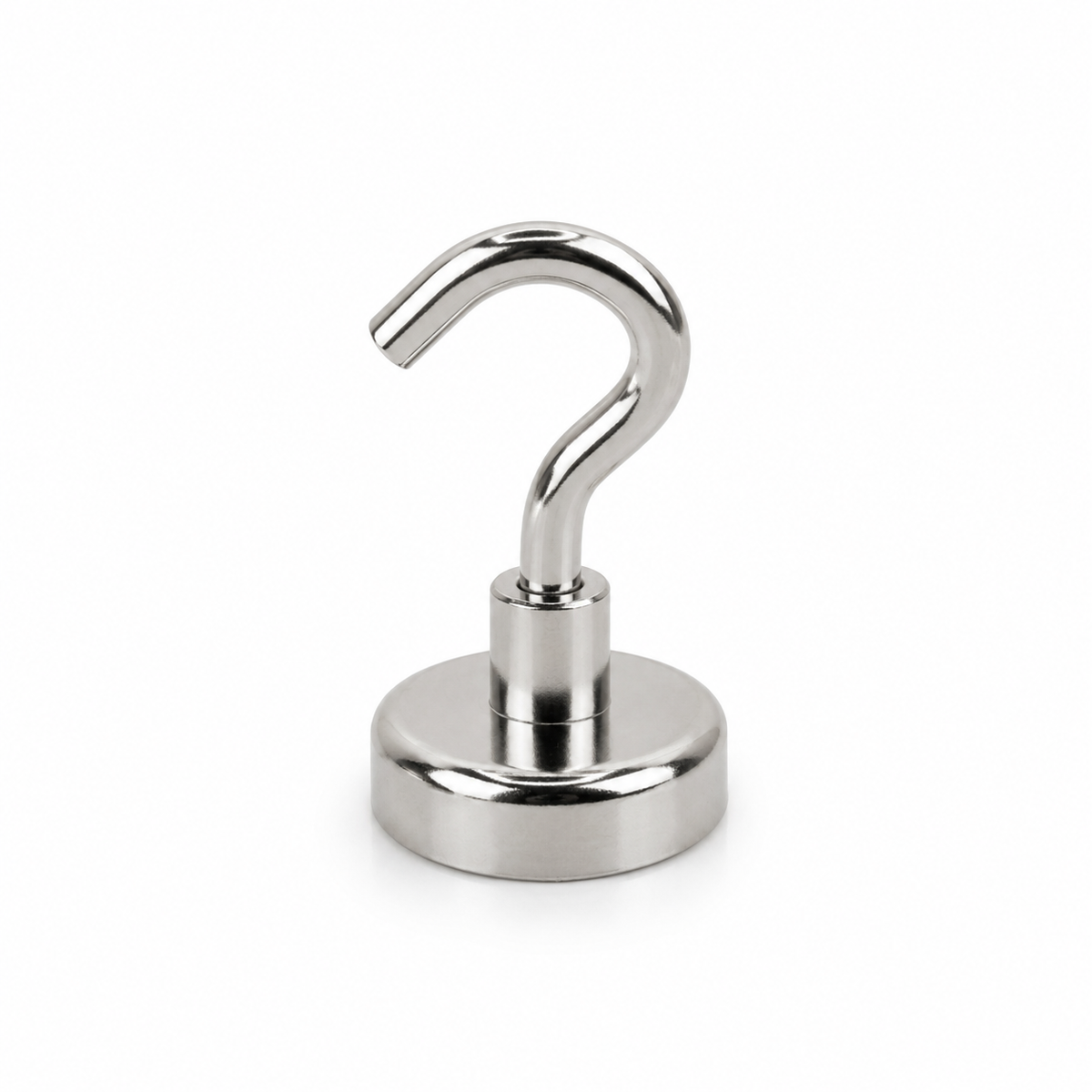

Neodymium Pot Magnet with Threaded Hook - 20mm diameter x 37mm

Product code: AMFYPE20

$6.04for 1 to 9 items
$5.28buy 10 to 99 itemsand save 12%
$4.14buy 100+ itemsand save 31%

Prices are GST Incl.

Volume pricing available on request

Neodymium Pot Magnet with Threaded Hook - 20mm diameter x 37mm

Rated 4.9 out of 5
Based on 19 reviews
Product Code AMFYPE20
Pull Force* 9 kg
Weight 21 gm
Style Rare earth threaded hook pot magnet
Coating Nickel (NiCuNi)
Direction of Magnetisation Axially magnetised thru the 7mm
*Measured against up to 10mm mild steel.
Neodymium Pot Magnet with Threaded Hook - 20mm diameter x 37mm

Rare Earth Magnetic Hooks Description:

This Rare Earth Neodymium Pot Magnet is fitted with a removable hook. A strong neodymium magnet sits inside the steel cap of this product. The steel cap concentrates the magnetic field to the base of the pot magnet, this increases it’s holding force.

Our heavy-duty magnetic hook is super strong for its size with a pull force of 9kg and a weight of 21 grams. This product has a diameter of 20mm, a total height of 37mm and a magnet housing thickness of 7mm. This neodymium pot magnet has an M4 thread with a removable 7mm hook attached.


Uses for our Strong Neodymium Magnetic Hooks:

AMF Neodymium Holding Pot magnets with a Threaded removable Hook will attach to any metallic surface. The powerful magnet sits inside a steel cap that concentrates magnetic force to the base and increases its holding ability. The steel casing protects the magnet from damage and corrosion which prolongs its life and enables them to be removed, reused and relocated over and over.

Use these magnetic hooks to suspend objects on iron clad buildings, sheds, demountables and relocatable homes or to keep work areas, offices, recreation areas or storage areas tidy and free of hazardous clutter. The self-adhering nature of magnetism is convenient, efficient and occurs instantly without the need for tools or expertise.

ModelNo. M H h TH Holding force(kg) Weight (g)
AMFYPE16 16 4 13 5 37 5.5 11
AMFYPE20 20 4 15 7 37 9 21
AMFYPE25 25 5 17 8 42 22 37
AMFYPE32 32 6 18 8 47  34 56
AMFYPE36 36 6 18 8 47 41 68
AMFYPE42 42 5 or 6 20 9 47 68 97
AMFYPE48 48 8 24 11.5 70 81 154
AMFYPE60 60 8 30 15 70 113 282
AMFYPE75 75 10 34 18 98 164 560

Neodymium Pot Magnet with Threaded Hook - 20mm diameter x 37mm (AMFYPE20)

Grade
N35 N/A
Max Operating Temperature °C
<=80 N/A
Remanence Br(T)
1.18-1.25 N/A
Remanence Br(kGs)
11.8-12.5>=859 N/A
Coercivity bHc(kA/m)
>=10.8 N/A
Coercivity bHc(Oe)
>=955 N/A
Intrinsic Coercivity iHc(kA/m)
>=12 N/A
Intrinsic Coercivity iHc(Oe)
263-294 N/A
Max Energy Product(BH)max(KJ/m)
33-37 N/A
Grade N35 N/A
Max Operating Temperature °C <=80 N/A
Remanence Br(T) 1.18-1.25 N/A
Remanence Br(kGs) 11.8-12.5>=859 N/A
Coercivity bHc(kA/m) >=10.8 N/A
Coercivity bHc(Oe) >=955 N/A
Intrinsic Coercivity iHc(kA/m) >=12 N/A
Intrinsic Coercivity iHc(Oe) 263-294 N/A
Max Energy Product(BH)max(KJ/m) 33-37 N/A

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
