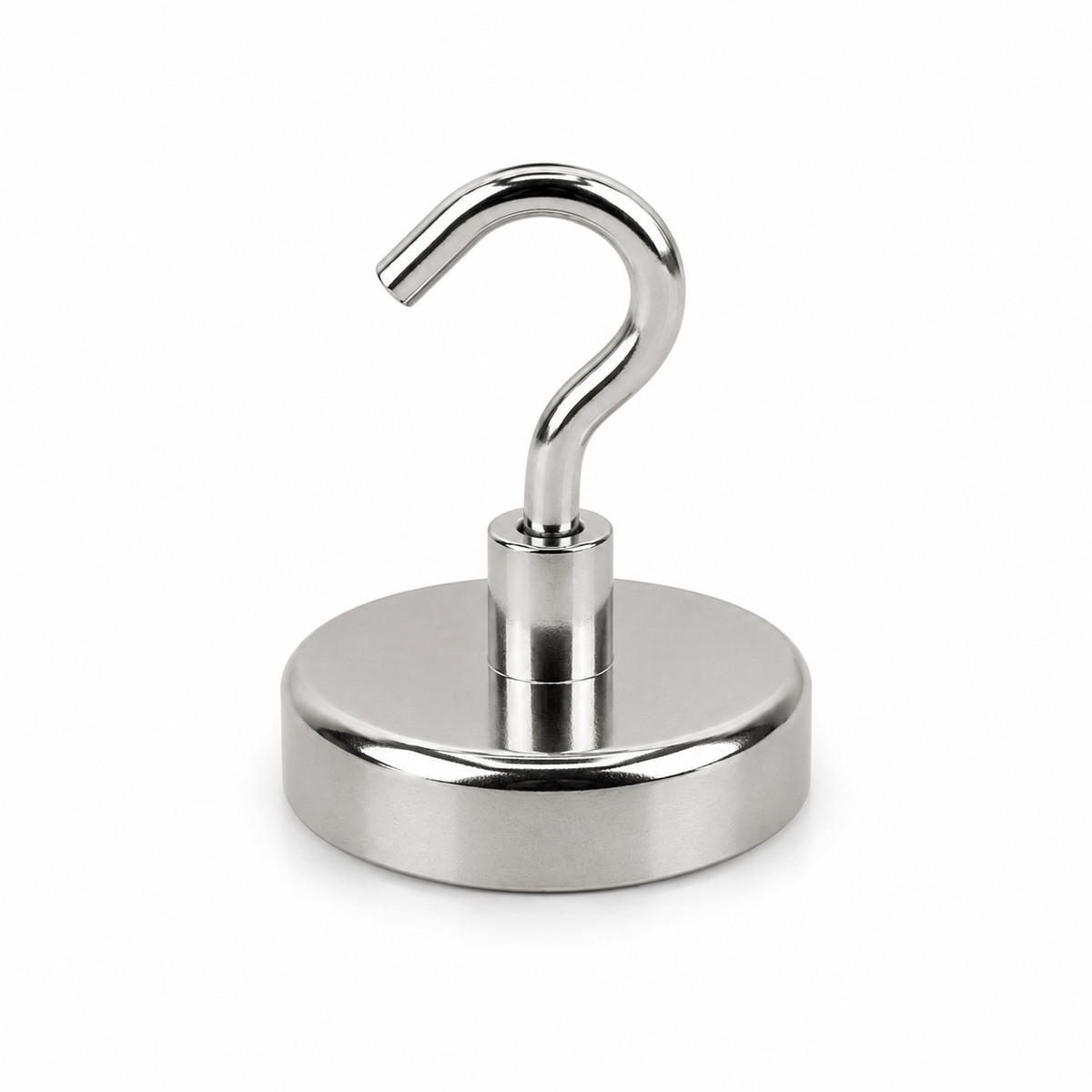

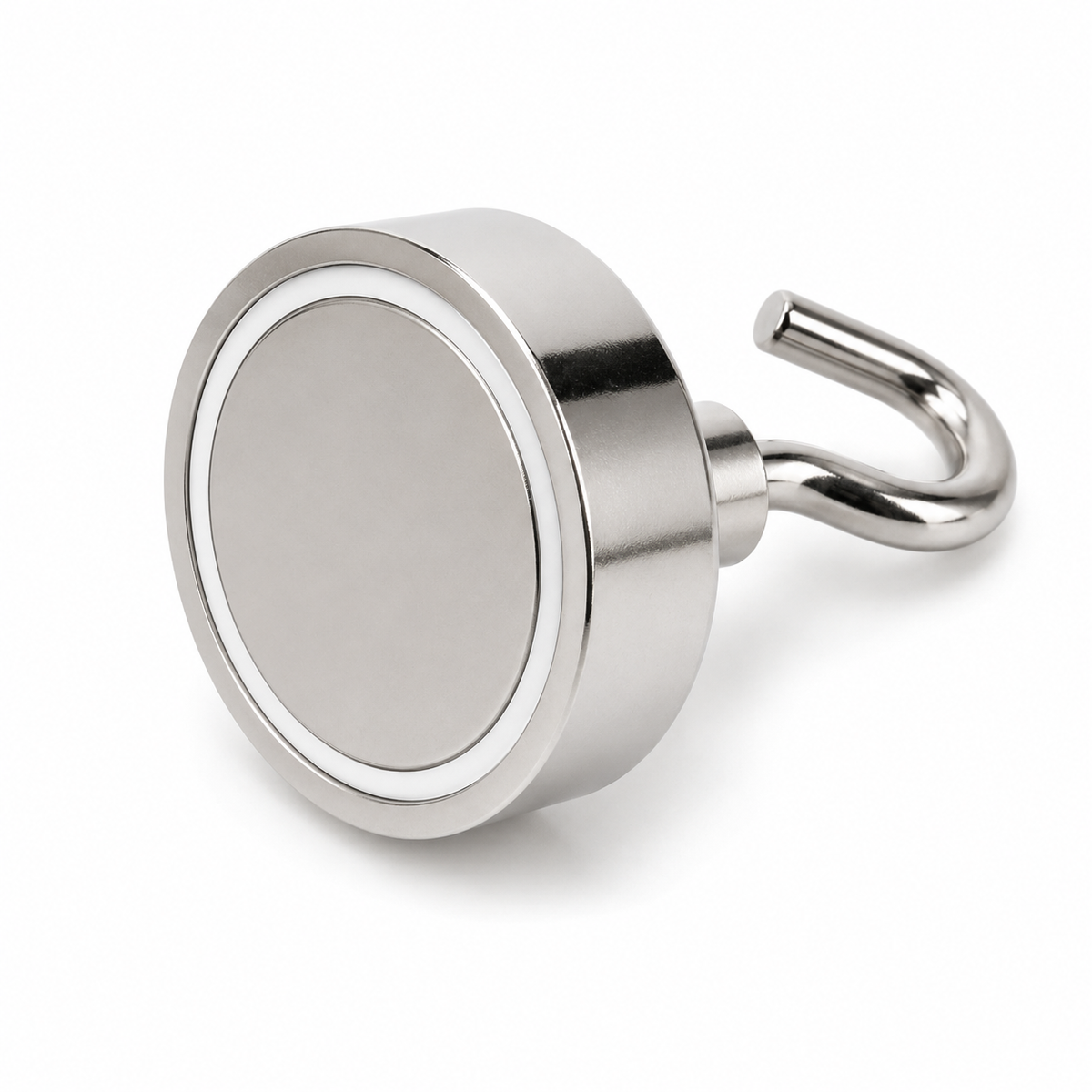

Neodymium Pot Magnet with Threaded Hook - 32mm diameter x 47mm

Product code: AMFYPE32

$11.13for 1 to 9 items
$8.35buy 10 to 99 itemsand save 24%
$6.96buy 100+ itemsand save 37%

Prices are GST Incl.

Volume pricing available on request

Neodymium Pot Magnet with Threaded Hook - 32mm diameter x 47mm

Rated 5.0 out of 5
5 Reviews
Product Code AMFYPE32
Pull Force* 34kg
Weight 56 gm
Style Rare earth threaded hook pot magnet
Coating Nickel (NiCuNi)
Direction of Magnetisation Axially magnetised thru the 8mm
*Measured against up to 10mm mild steel.
Neodymium Pot Magnet with Threaded Hook - 32mm diameter x 47mm

Threaded Magnetic Pots Product Description:

This rare earth pot magnet with a threaded hook has a strong pull force and is available in a wide range of sizes and strengths. AMF magnetics offers bulk discounts for this product. This Neodymium pot has a pull strength of 34kg measured against mild steel and a weight of 56 grams. It has a diameter of 32mm, a total height of 47mm and a magnet housing thickness of 8mm. This neodymium pot magnet has an M6 thread with an 8mm hook. It is identified by the AMF magnet part number AMFYPE32.


Uses for our rare earth threaded hook holding magnets:

These Neodymium magnetic holding pots have a Hook accessory that can support heavy weights. Pot magnets redirect their magnetic field to their uncapped base, supporting a superior holding force. Both the North and South poles are represented at the flat holding surface so, unlike uncapped magnets, two pot-style magnets will not attract in a reciprocal fashion.

These Hook magnets are excellent organisational tools for circumstances where clutter and disorder can be inefficient, dangerous and unsightly. They attach to any metallic surface that has sufficient iron content and this 32mm diameter item can hold up to 34 kg under optimal conditions. Decluttering workplaces or recreational areas with Hook-type magnets has far reaching benefits in terms of both safety and convenience.

ModelNo. M H h TH Holding force(kg) Weight (g)
AMFYPE16 16 4 13 5 37 5.5 11
AMFYPE20 20 4 15 7 37 9 21
AMFYPE25 25 5 17 8 42 22 37
AMFYPE32 32 6 18 8 47  34 56
AMFYPE36 36 6 18 8 47 41 68
AMFYPE42 42 5 or 6 20 9 47 68 97
AMFYPE48 48 8 24 11.5 70 81 154
AMFYPE60 60 8 30 15 70 113 282
AMFYPE75 75 10 34 18 98 164 560

Neodymium Pot Magnet with Threaded Hook - 32mm diameter x 47mm (AMFYPE32)

Grade
N35 N/A
Max Operating Temperature °C
<=80 N/A
Remanence Br(T)
1.18-1.25 N/A
Remanence Br(kGs)
11.8-12.5>=859 N/A
Coercivity bHc(kA/m)
>=10.8 N/A
Coercivity bHc(Oe)
>=955 N/A
Intrinsic Coercivity iHc(kA/m)
>=12 N/A
Intrinsic Coercivity iHc(Oe)
263-294 N/A
Max Energy Product(BH)max(KJ/m)
33-37 N/A
Grade N35 N/A
Max Operating Temperature °C <=80 N/A
Remanence Br(T) 1.18-1.25 N/A
Remanence Br(kGs) 11.8-12.5>=859 N/A
Coercivity bHc(kA/m) >=10.8 N/A
Coercivity bHc(Oe) >=955 N/A
Intrinsic Coercivity iHc(kA/m) >=12 N/A
Intrinsic Coercivity iHc(Oe) 263-294 N/A
Max Energy Product(BH)max(KJ/m) 33-37 N/A
average rating 5.0 out of 5
Based on 5 reviews
  • 5 Stars
    5 Reviews
  • 4 Stars
    0 Reviews
  • 3 Stars
    0 Reviews
  • 2 Stars
    0 Reviews
  • 1 Star
    0 Reviews
100% of reviewers would recommend this product to a friend
5 Reviews
Reviewed by Jo H.
I recommend this product
Rated 5 out of 5
Review posted

Amazing Service and product

I was extremely impressed with the customer service I received with some questions I had. I also wanted quick delivery and was informed there may be a delay with the COVD-19 situation. However I ordered before the required time and they were delivered the next day. This blew me away. To top it off the hook magnets are high quality and are working brilliantly. We are using them to hold up curtain rods in our rental (which has a steel frame). It means we can keep the heat in in Winter and block the sun out in Summer. Fantastic, thanks to the team for your amazing service and products. Will definitely use again.

Loading...
Was this helpful?
Reviewed by Matt T.
I recommend this product
Rated 5 out of 5
Review posted

Powerful and great for heavy storage

I use two of these magnets to hold up a phone storage unit. I needed an alternative to 3M stickies. This was a great idea as we needed to utilise the steel bulkhead of the ship. The phone storage unit holds about 30 phones and is solid. Great magnet, I strongly recommend.

Loading...
Was this helpful?
Reviewed by KRISHNAKUMAR
I recommend this product
Rated 5 out of 5
Review posted

EXCELLENT WORK

FAST AND EASY ORDERING PROCESS

RECEIVED ON TIME

Loading...
Was this helpful?
Reviewed by Ernie B.
I recommend this product
Rated 5 out of 5
Review posted

Hooks for metal cargo barrier.

Very convenient and able to hold a 2ltr dialysis bag during an exchange.

Loading...
Was this helpful?
Reviewed by Warwick
I recommend this product
Rated 5 out of 5
Review posted

Excellent product for our purpose

Product was used to attach a strip screen to a steel lintel across an aluminium sliding door to allow easy access to the backyard for the dog. The construction of the aluminum sliding door would not allow for the use of screws to install.

Loading...
Was this helpful?
