Neodymium Pot Magnet with Threaded Hook - 42mm diameter x 47mm
Product code: AMFYPE42
$26.39for 1 to 9 items
$20.64buy 10 to 99 itemsand
save 21%
$17.19buy 100+ itemsand
save 34%
Neodymium Pot Magnet with Threaded Hook - 42mm diameter x 47mm
Rated 5.0 out of 5
Product Code
AMFYPE42
Pull Force*
68kg
Weight
92 gm
Style
Rare earth threaded hook pot magnet
Coating
Nickel (NiCuNi)
Direction of Magnetisation
Axially magnetised thru the 9mm
*Measured against up to 10mm mild steel.
Product Description:

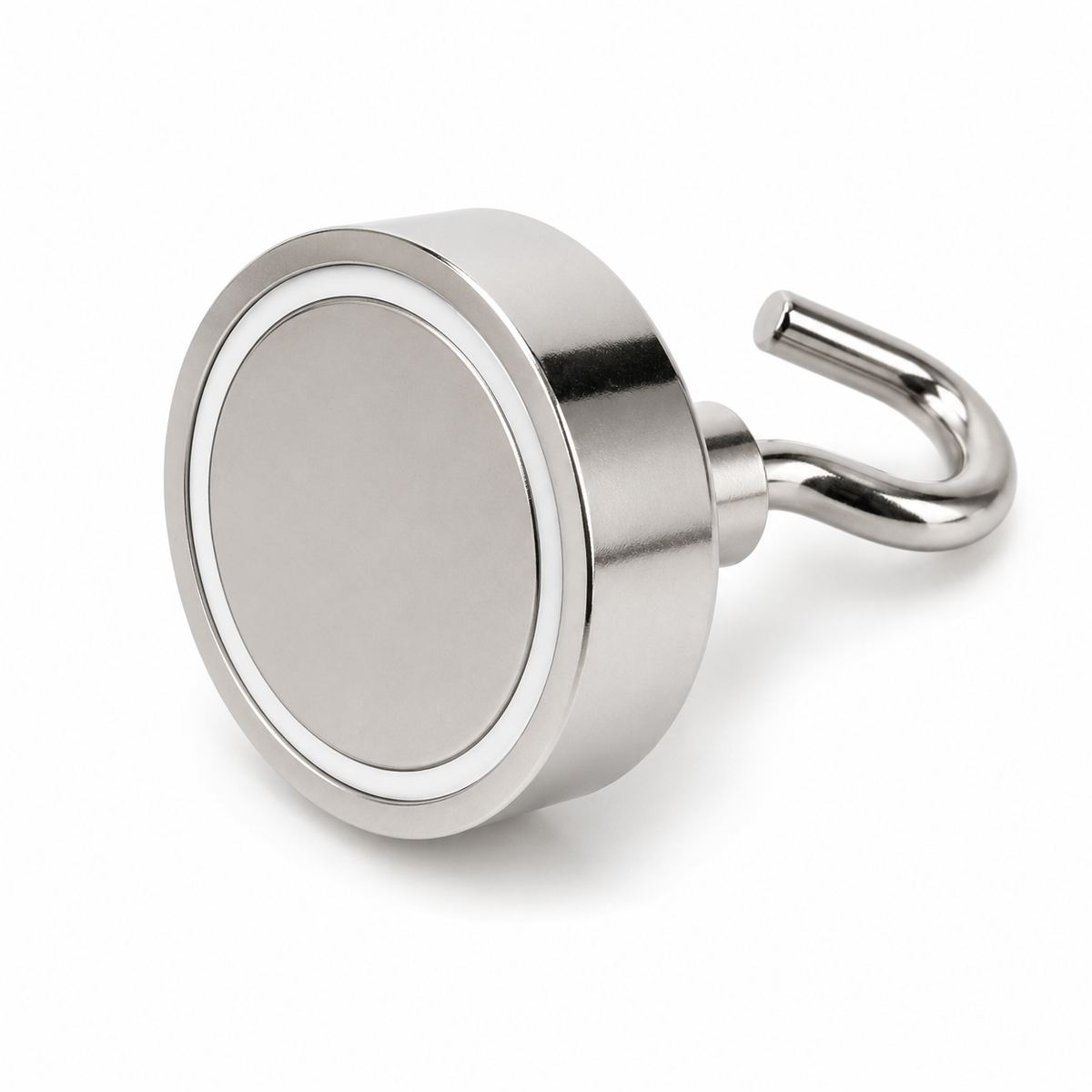

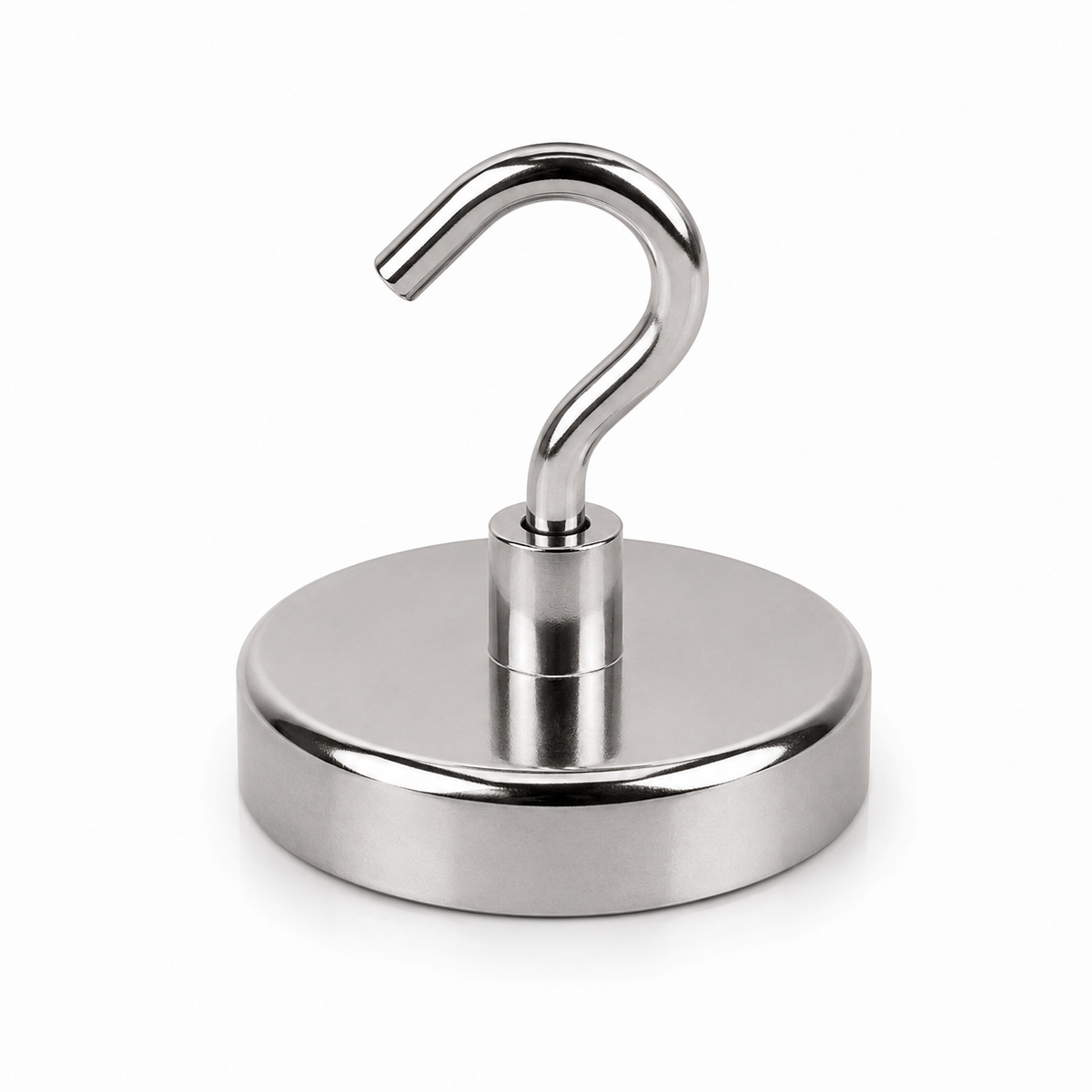

This rare earth threaded hook pot magnet has a pull force of 68 kg and a weight of 92 grams. It has a diameter of 42mm, a total height of 47mm and a magnet housing thickness of 9mm. This neodymium mounting magnet has an M6 thread with a 7mm hook. It is identified by AMF Magnets part number AMFYPE42.
Uses for our rare earth threaded hook pot magnets:
Our rare earth holding pot (threaded hook) magnets are excellent for holding cabling out of the way. These neodymium holding pot magnets are high strength rare earth magnets in a mild steel cap for extra protection against chipping or cracking. Due to the protective cover on these pot magnets, they are a single sided magnet which allows for a non-destructive and easy solution for attaching and suspending objects.
| ModelNo. | DØ | M | H | h | TH | Holding force(kg) | Weight (g) |
| AMFYPE16 | 16 | 4 | 13 | 5 | 37 | 5.5 | 11 |
| AMFYPE20 | 20 | 4 | 15 | 7 | 37 | 9 | 21 |
| AMFYPE25 | 25 | 5 | 17 | 8 | 42 | 22 | 37 |
| AMFYPE32 | 32 | 6 | 18 | 8 | 47 | 34 | 56 |
| AMFYPE36 | 36 | 6 | 18 | 8 | 47 | 41 | 68 |
| AMFYPE42 | 42 | 5 or 6 | 20 | 9 | 47 | 68 | 97 |
| AMFYPE48 | 48 | 8 | 24 | 11.5 | 70 | 81 | 154 |
| AMFYPE60 | 60 | 8 | 30 | 15 | 70 | 113 | 282 |
| AMFYPE75 | 75 | 10 | 34 | 18 | 98 | 164 | 560 |
Neodymium Pot Magnet with Threaded Hook - 42mm diameter x 47mm (AMFYPE42)
| Grade | |
|---|---|
| N35 | N/A |
| Max Operating Temperature °C | |
| <=80 | N/A |
| Remanence Br(T) | |
| 1.18-1.25 | N/A |
| Remanence Br(kGs) | |
| 11.8-12.5>=859 | N/A |
| Coercivity bHc(kA/m) | |
| >=10.8 | N/A |
| Coercivity bHc(Oe) | |
| >=955 | N/A |
| Intrinsic Coercivity iHc(kA/m) | |
| >=12 | N/A |
| Intrinsic Coercivity iHc(Oe) | |
| 263-294 | N/A |
| Max Energy Product(BH)max(KJ/m) | |
| 33-37 | N/A |
| Grade | N35 | N/A |
| Max Operating Temperature °C | <=80 | N/A |
| Remanence Br(T) | 1.18-1.25 | N/A |
| Remanence Br(kGs) | 11.8-12.5>=859 | N/A |
| Coercivity bHc(kA/m) | >=10.8 | N/A |
| Coercivity bHc(Oe) | >=955 | N/A |
| Intrinsic Coercivity iHc(kA/m) | >=12 | N/A |
| Intrinsic Coercivity iHc(Oe) | 263-294 | N/A |
| Max Energy Product(BH)max(KJ/m) | 33-37 | N/A |
NB: Ranges are indicative for product category, please check individual products for specic values within that range.
The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.
Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.
Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
