Neodymium Pot Magnet with Threaded Hook - 25mm diameter x 42mm Neodymium Pot Magnet with Threaded Hook - 25mm diameter x 42mm Cart

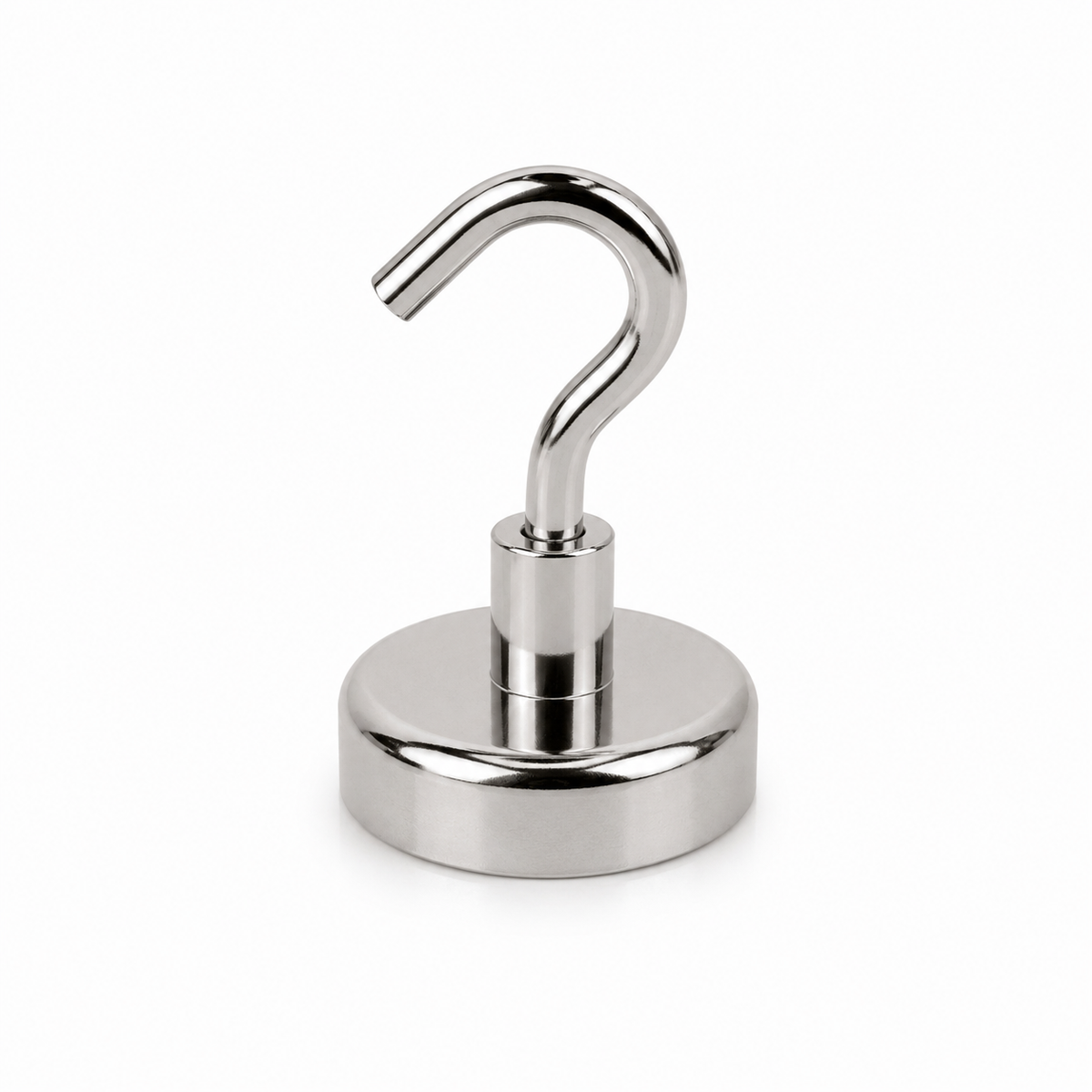

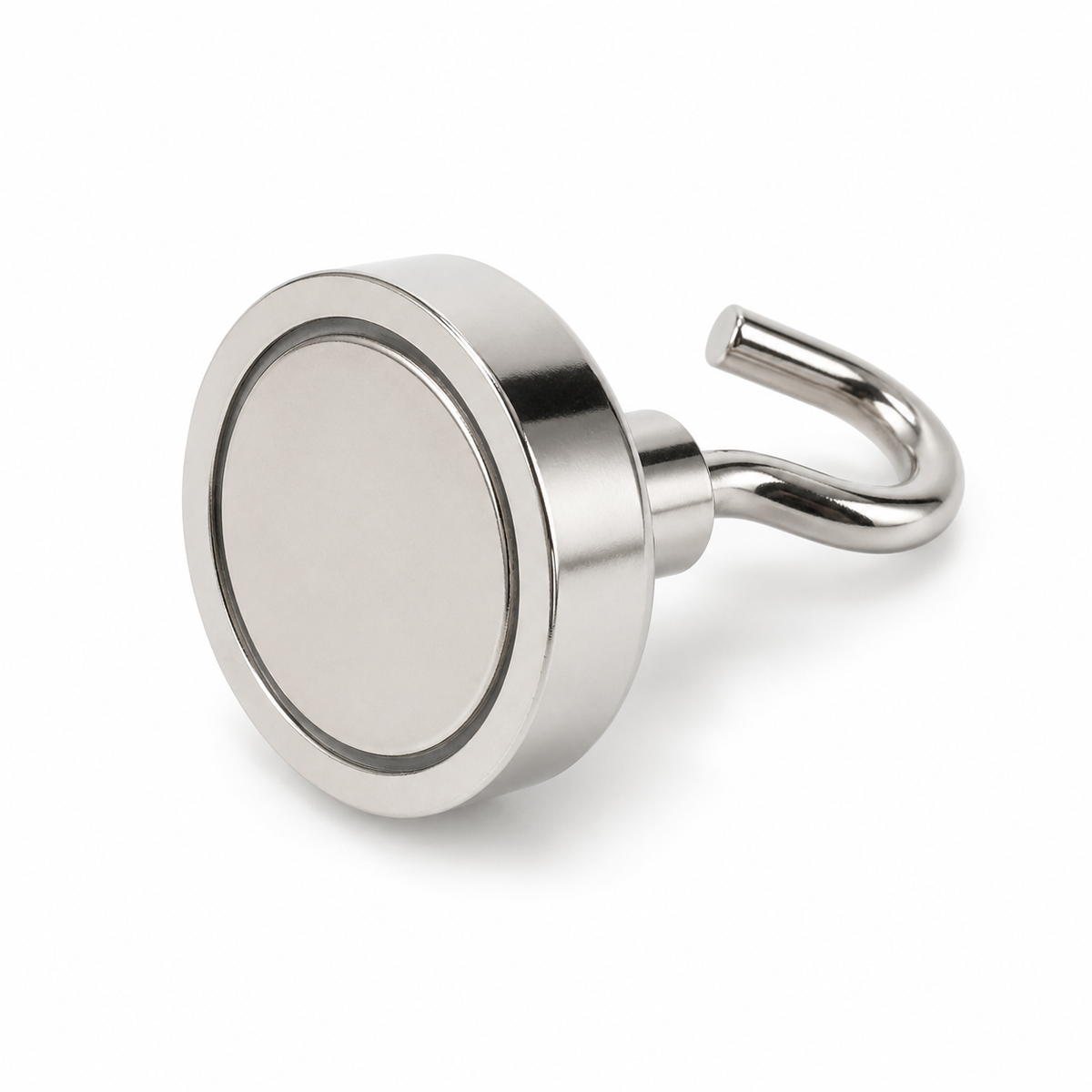

Neodymium Pot Magnet with Threaded Hook - 25mm diameter x 42mm

Product code: AMFYPE25

Neodymium Pot - Threaded Hook 25mm x 15mm
$8.81for 1 to 9 items
$6.84buy 10 to 99 itemsand save 22%
$5.69buy 100+ itemsand save 35%

Prices are GST Incl.

Volume pricing available on request

Neodymium Pot Magnet with Threaded Hook - 25mm diameter x 42mm

Rated 5.0 out of 5
Based on 10 reviews
Product Code AMFYPE25
Pull Force* 22kg
Weight 37 gm
Style Rare earth threaded hook pot magnet
Coating Nickel (NiCuNi)
Direction of Magnetisation Axially magnetised thru the 8mm
*Measured against up to 10mm mild steel.
Neodymium Pot Magnet with Threaded Hook - 25mm diameter x 42mm

Neodymium Pot Magnet w/ Threaded Hook Description:

This Rare Earth Magnetic Hook consists of a super-strong Neodymium magnet housed within a mild steel holding pot. A threaded hook is attached to this pot magnet specifically for heavy-duty holding purposes. The Rare Earth Magnet has a holding force of 22kg and a weight of 37grams. It has a diameter of 25mm, a total height of 42mm and a magnet housing thickness of 8mm. This neodymium pot magnet has an M5 thread with a 7mm hook.


Uses for our Strong Magnetic Hooks:

This Neodymium Holding Pot magnet is supplied with a threaded Hook and makes an excellent temporary or removable hanging point. The magnet can attach to any ferrous metal surface and is designed to hold heavy weights on vertical surfaces.

For retailers, builders, repairmen and maintenance workers, these heavy-duty magnetic hooks are invaluable for advertising, displaying products and organising equipment. They attach instantly and can be repeatedly relocated to a different height or a more convenient position.

Rare Earth Pot Magnetic Hooks are also handy for those who enjoy recreational activities such as camping, fishing, hiking or caravanning. Use Hook magnets to suspend utensils or tools off the ground and keep spaces safer, more organised and more hygienic.

ModelNo. DØ M H h TH Holding force(kg) Weight (g)
AMFYPE16 16 4 13 5 37 5.5 11
AMFYPE20 20 4 15 7 37 9 21
AMFYPE25 25 5 17 8 42 22 37
AMFYPE32 32 6 18 8 47  34 56
AMFYPE36 36 6 18 8 47 41 68
AMFYPE42 42 5 or 6 20 9 47 68 97
AMFYPE48 48 8 24 11.5 70 81 154
AMFYPE60 60 8 30 15 70 113 282
AMFYPE75 75 10 34 18 98 164 560

Neodymium Pot Magnet with Threaded Hook - 25mm diameter x 42mm (AMFYPE25)

Grade
N35 N/A
Max Operating Temperature °C
<=80 N/A
Remanence Br(T)
1.18-1.25 N/A
Remanence Br(kGs)
11.8-12.5>=859 N/A
Coercivity bHc(kA/m)
>=10.8 N/A
Coercivity bHc(Oe)
>=955 N/A
Intrinsic Coercivity iHc(kA/m)
>=12 N/A
Intrinsic Coercivity iHc(Oe)
263-294 N/A
Max Energy Product(BH)max(KJ/m)
33-37 N/A
Grade N35 N/A
Max Operating Temperature °C <=80 N/A
Remanence Br(T) 1.18-1.25 N/A
Remanence Br(kGs) 11.8-12.5>=859 N/A
Coercivity bHc(kA/m) >=10.8 N/A
Coercivity bHc(Oe) >=955 N/A
Intrinsic Coercivity iHc(kA/m) >=12 N/A
Intrinsic Coercivity iHc(Oe) 263-294 N/A
Max Energy Product(BH)max(KJ/m) 33-37 N/A

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.

Write a Review
average rating 5.0 out of 5
Based on 10 reviews
  • 5 Stars
    10 Reviews
  • 4 Stars
    0 Reviews
  • 3 Stars
    0 Reviews
  • 2 Stars
    0 Reviews
  • 1 Star
    0 Reviews
100% of reviewers would recommend this product to a friend
10 Reviews
Reviewed by rose
Verified Buyer
I recommend this product
Rated 5 out of 5
Review posted

Bought 3 strengths and tested them

Great quality, if you want to properly hang serious things, don't go less than the 20kg pull force category...

Bought these for a series of uses in my house. One is to hang items off a metal rack.

Bought different types, and this is what i found:

- the 25mmx42 - won't hold a frypan. Can hold a wool long coat however.

- 32mmx47 - can technically hang an average cooking frypan, but it might flip off if the pan swings or something. I'd recommend going a strength up just to be sure. can hang a metal colander fine.

- 36mmx47- definitely good for a frypan. won't hold a bag of oranges.

Loading...
Was this helpful?
Reviewed by Graeme W.
Verified Buyer
I recommend this product
Rated 5 out of 5
Review posted

Hook magnets

Excellent holding power on fridge for oven mitts

Loading...
Was this helpful?
Reviewed by Max H.
Verified Buyer
I recommend this product
Rated 5 out of 5
Review posted

Magnet Hooks

They solved a space problem effectively & efficiently.

Loading...
Was this helpful?
Reviewed by Jules
I recommend this product
Rated 5 out of 5
Review posted

Excellent magnets

These hooks are fantastic and incredibly strong! AMF magnets sent them out very promptly and I'm really impressed, perfect for what I need them for. I will definitely be buying from AMF again.

Loading...
Was this helpful?
Reviewed by BrianS
I recommend this product
Rated 5 out of 5
Review posted

Easier to remove with the hook

We have been using magnets for years now to retain glass panels in steel frame windows whilst the silicon initially cures. The hook makes it easier to remove them the next day.

Loading...
Was this helpful?
