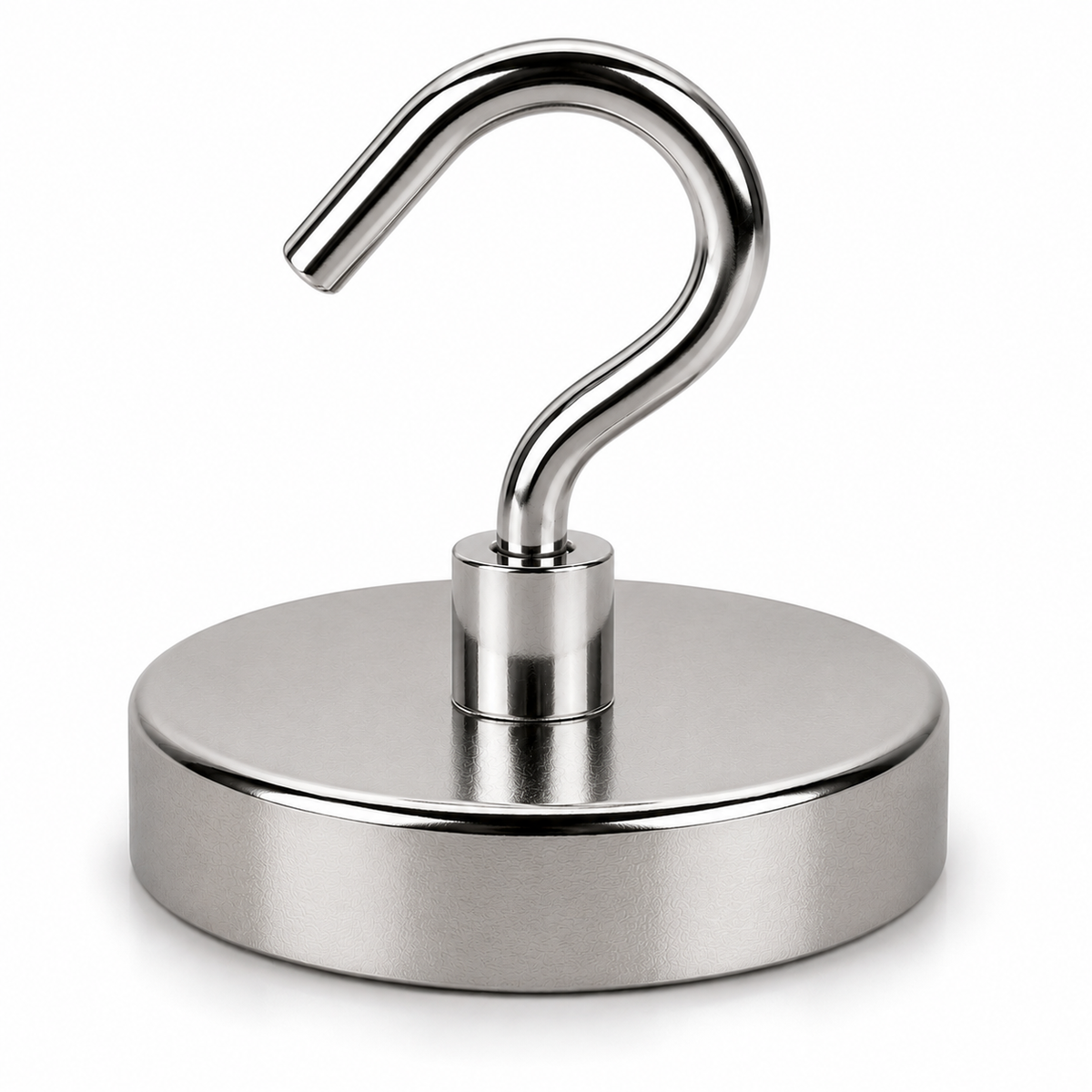

Neodymium Pot Magnet with Threaded Hook - 60mm diameter x 70mm
Product code: AMFYPE60
Neodymium Pot Magnet with Threaded Hook - 60mm diameter x 70mm
Magnetic Product Description:
This rare earth threaded hook pot magnet has a pull force of 113kg and a weight of 282g. It has a diameter of 60mm, a total height of 70mm and a magnet housing thickness of 15mm. This neodymium pot magnet has an M8 thread with an 8mm hook. It is identified by the AMF magnet part number AMFYPE60.
Uses for our rare earth threaded hook pot magnets:
These Neodymium Holding Pot Hook Magnets are popular with builders, office and shop fitters, advertising companies and many others for the strong and reliable hold they provide. Able to be attached to and ferrous metallic surface, these hooks provide a removable and reusable solution for storage of heavy and bulky items. The powerful Neodymium magnet is housed inside a mild steel cap which protects the brittle magnet from damage such as chipping and cracking when in repeated use. The steel cap also increases the strength of the magnet, projecting a stronger magnetic field through the working face of the magnets. These hooks are suitable for commercial or recreational applications to keep ropes, power cords, electrical wiring elevated and secured safely out of harm's way.
| ModelNo. | DØ | M | H | h | TH | Holding force(kg) | Weight (g) |
| AMFYPE16 | 16 | 4 | 13 | 5 | 37 | 5.5 | 11 |
| AMFYPE20 | 20 | 4 | 15 | 7 | 37 | 9 | 21 |
| AMFYPE25 | 25 | 5 | 17 | 8 | 42 | 22 | 37 |
| AMFYPE32 | 32 | 6 | 18 | 8 | 47 | 34 | 56 |
| AMFYPE36 | 36 | 6 | 18 | 8 | 47 | 41 | 68 |
| AMFYPE42 | 42 | 5 or 6 | 20 | 9 | 47 | 68 | 97 |
| AMFYPE48 | 48 | 8 | 24 | 11.5 | 70 | 81 | 154 |
| AMFYPE60 | 60 | 8 | 30 | 15 | 70 | 113 | 282 |
| AMFYPE75 | 75 | 10 | 34 | 18 | 98 | 164 | 560 |
Neodymium Pot Magnet with Threaded Hook - 60mm diameter x 70mm (AMFYPE60)
| Grade | |
|---|---|
| N35 | N/A |
| Max Operating Temperature °C | |
| <=80 | N/A |
| Remanence Br(T) | |
| 1.18-1.25 | N/A |
| Remanence Br(kGs) | |
| 11.8-12.5>=859 | N/A |
| Coercivity bHc(kA/m) | |
| >=10.8 | N/A |
| Coercivity bHc(Oe) | |
| >=955 | N/A |
| Intrinsic Coercivity iHc(kA/m) | |
| >=12 | N/A |
| Intrinsic Coercivity iHc(Oe) | |
| 263-294 | N/A |
| Max Energy Product(BH)max(KJ/m) | |
| 33-37 | N/A |
| Grade | N35 | N/A |
| Max Operating Temperature °C | <=80 | N/A |
| Remanence Br(T) | 1.18-1.25 | N/A |
| Remanence Br(kGs) | 11.8-12.5>=859 | N/A |
| Coercivity bHc(kA/m) | >=10.8 | N/A |
| Coercivity bHc(Oe) | >=955 | N/A |
| Intrinsic Coercivity iHc(kA/m) | >=12 | N/A |
| Intrinsic Coercivity iHc(Oe) | 263-294 | N/A |
| Max Energy Product(BH)max(KJ/m) | 33-37 | N/A |
NB: Ranges are indicative for product category, please check individual products for specic values within that range.
The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.
Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.
Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
