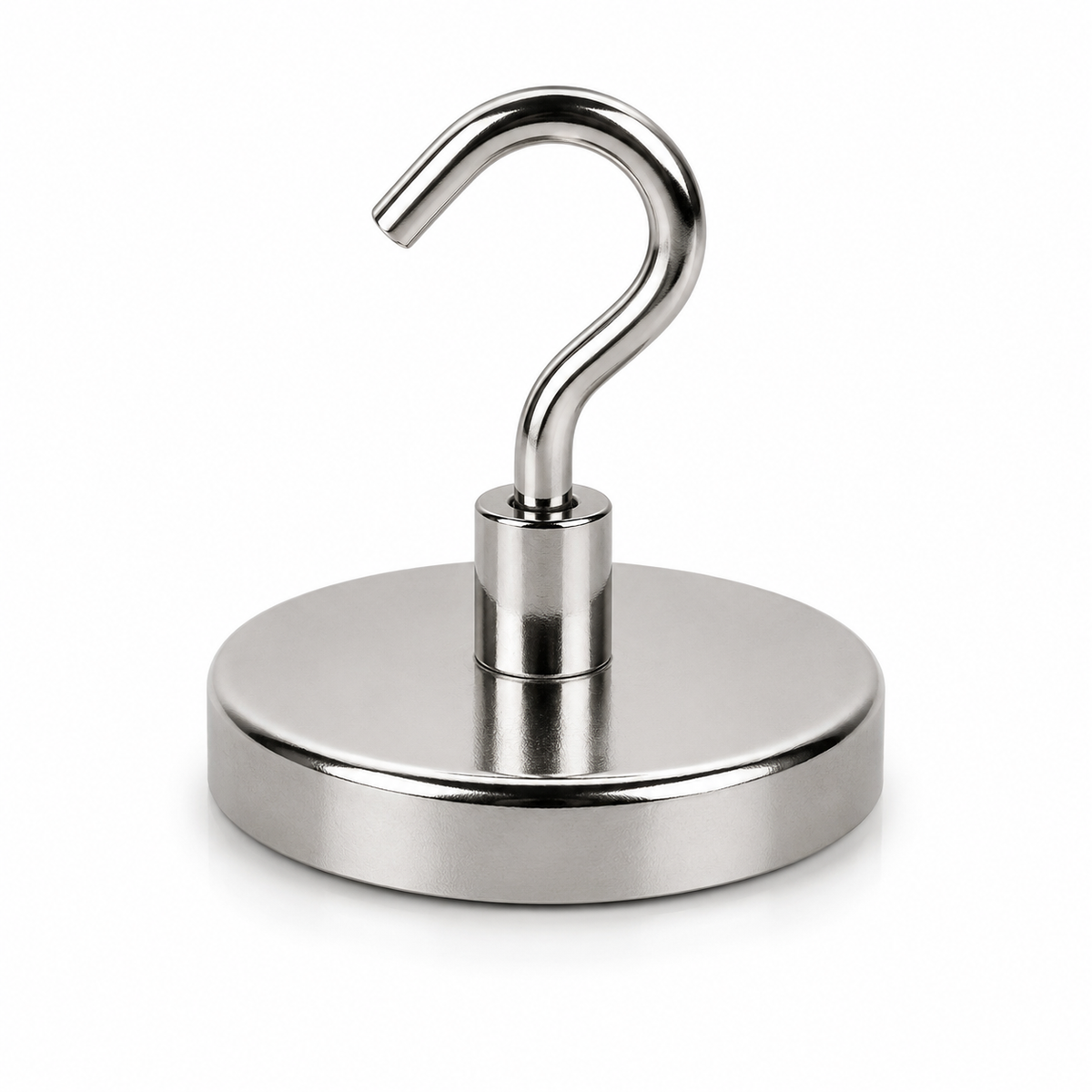

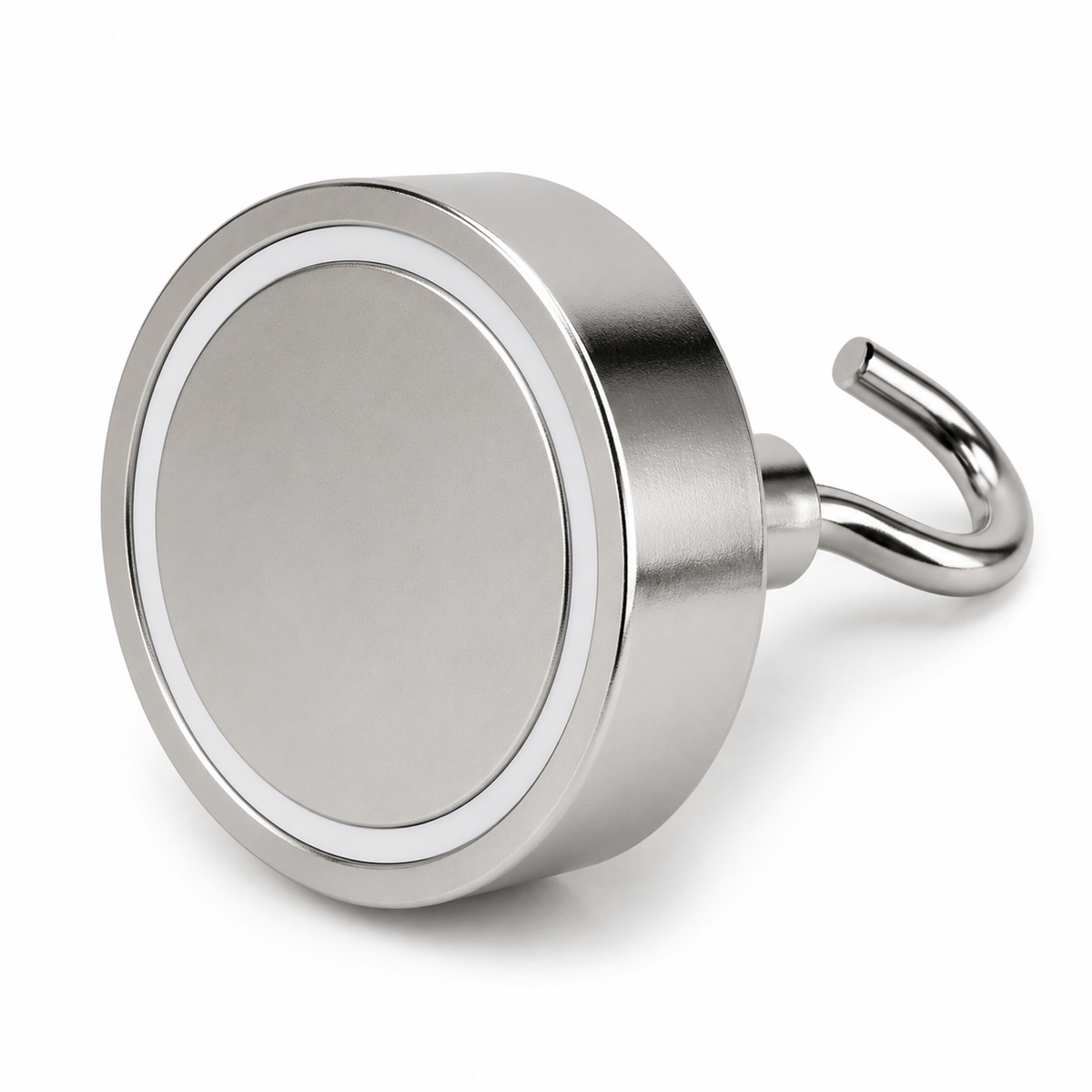

Neodymium Pot Magnet with Threaded Hook - 48mm diameter x 70mm

Product code: AMFYPE48

$40.24for 1 to 9 items
$30.53buy 10 to 99 itemsand save 24%
$23.58buy 100+ itemsand save 41%

Prices are GST Incl.

Volume pricing available on request

Neodymium Pot Magnet with Threaded Hook - 48mm diameter x 70mm

Product Code AMFYPE48
Pull Force* 81kg
Weight 155 gm
Style Rare earth threaded hook pot magnet
Coating Nickel (NiCuNi)
Direction of Magnetisation Axially magnetised thru the 11.5mm
*Measured against up to 10mm mild steel.
Neodymium Pot Magnet with Threaded Hook - 48mm diameter x 70mm

Magnetic Product Description:

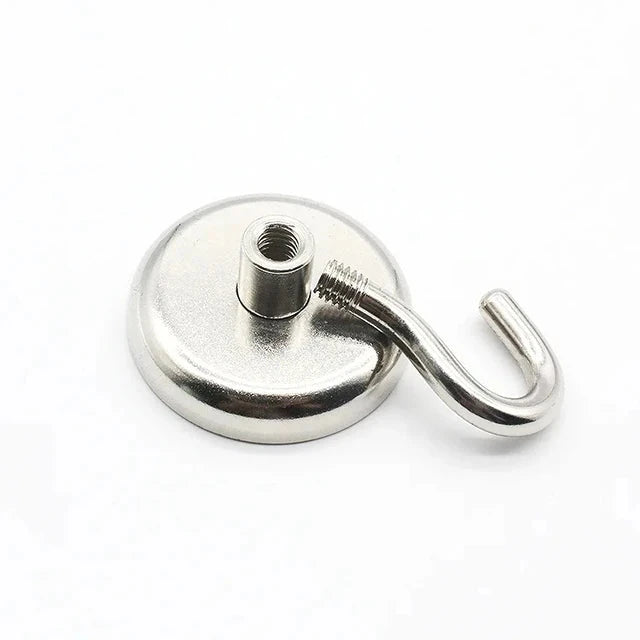

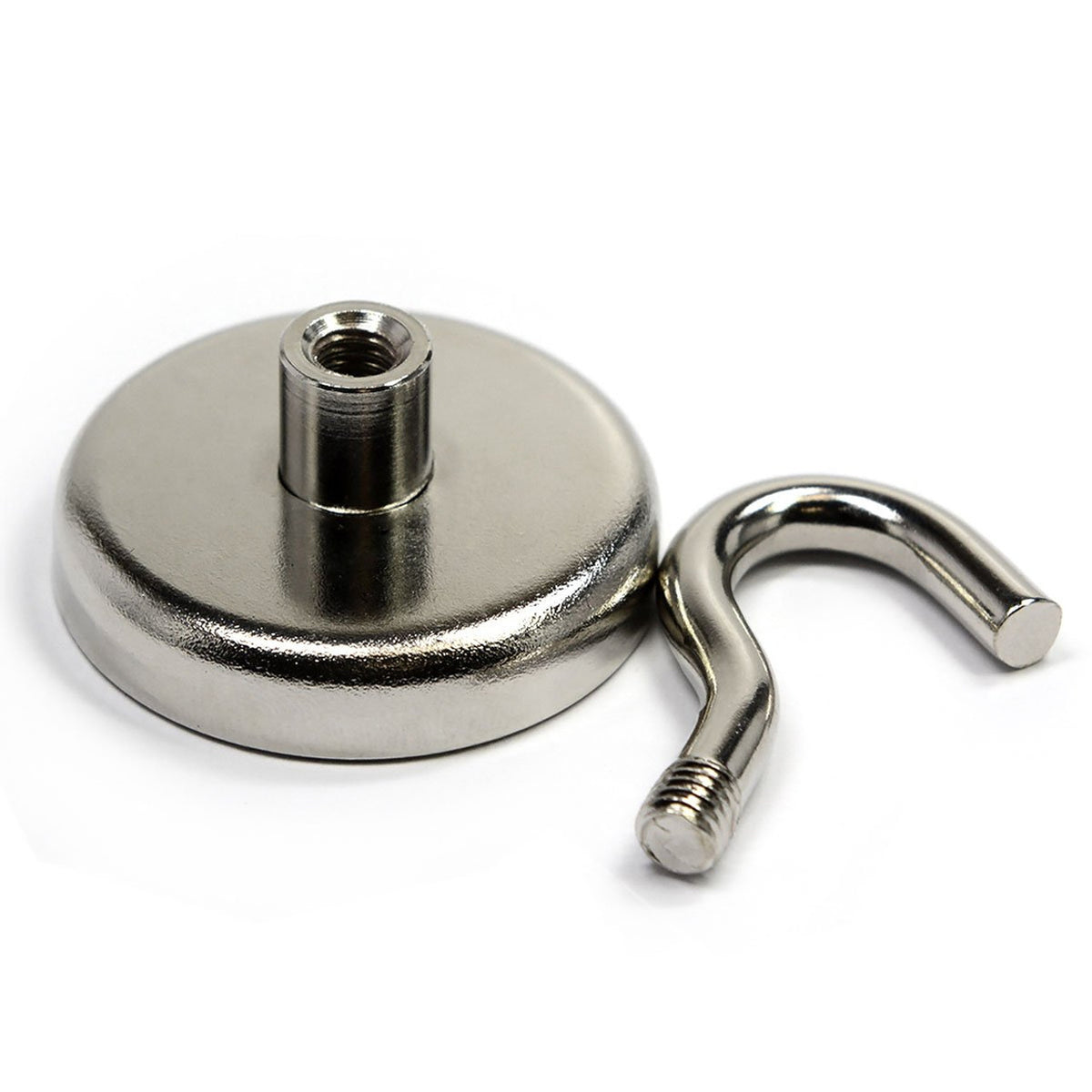

This rare earth threaded hook pot magnet has a pull force of 81kg and a weight of 155 grams. It has a diameter of 48mm, a total height of 70mm and a magnet housing thickness of 9mm. This neodymium pot magnet has an M6 thread with a 7mm hook. It is identified by the AMF magnet part number AMFYPE48.


Uses for our rare earth threaded hook pot magnets:

This Neodymium Holding Pot magnet comes complete with a threaded hook and it makes and excellent hanging point on vertical or horizontal ferrous surfaces that is reliable and strong. Ideal for use in industrial applications such as worksites and warehousing for storing tools, or keeping cabling safely controlled. The magnets are able to be removed, reused and relocated and it is this flexibility that is so appealing to our customers. The hooks can be used for a myriad of applications – attached to work trucks, farming equipment, warehouse machinery, trailers, fishing boats and shipping containers without the need for screws or glue and can be attached or removed instantly.

ModelNo. M H h TH Holding force(kg) Weight (g)
AMFYPE16 16 4 13 5 37 5.5 11
AMFYPE20 20 4 15 7 37 9 21
AMFYPE25 25 5 17 8 42 22 37
AMFYPE32 32 6 18 8 47  34 56
AMFYPE36 36 6 18 8 47 41 68
AMFYPE42 42 5 or 6 20 9 47 68 97
AMFYPE48 48 8 24 11.5 70 81 154
AMFYPE60 60 8 30 15 70 113 282
AMFYPE75 75 10 34 18 98 164 560

Neodymium Pot Magnet with Threaded Hook - 48mm diameter x 70mm (AMFYPE48)

Grade
N35 N/A
Max Operating Temperature °C
<=80 N/A
Remanence Br(T)
1.18-1.25 N/A
Remanence Br(kGs)
11.8-12.5>=859 N/A
Coercivity bHc(kA/m)
>=10.8 N/A
Coercivity bHc(Oe)
>=955 N/A
Intrinsic Coercivity iHc(kA/m)
>=12 N/A
Intrinsic Coercivity iHc(Oe)
263-294 N/A
Max Energy Product(BH)max(KJ/m)
33-37 N/A
Grade N35 N/A
Max Operating Temperature °C <=80 N/A
Remanence Br(T) 1.18-1.25 N/A
Remanence Br(kGs) 11.8-12.5>=859 N/A
Coercivity bHc(kA/m) >=10.8 N/A
Coercivity bHc(Oe) >=955 N/A
Intrinsic Coercivity iHc(kA/m) >=12 N/A
Intrinsic Coercivity iHc(Oe) 263-294 N/A
Max Energy Product(BH)max(KJ/m) 33-37 N/A

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
