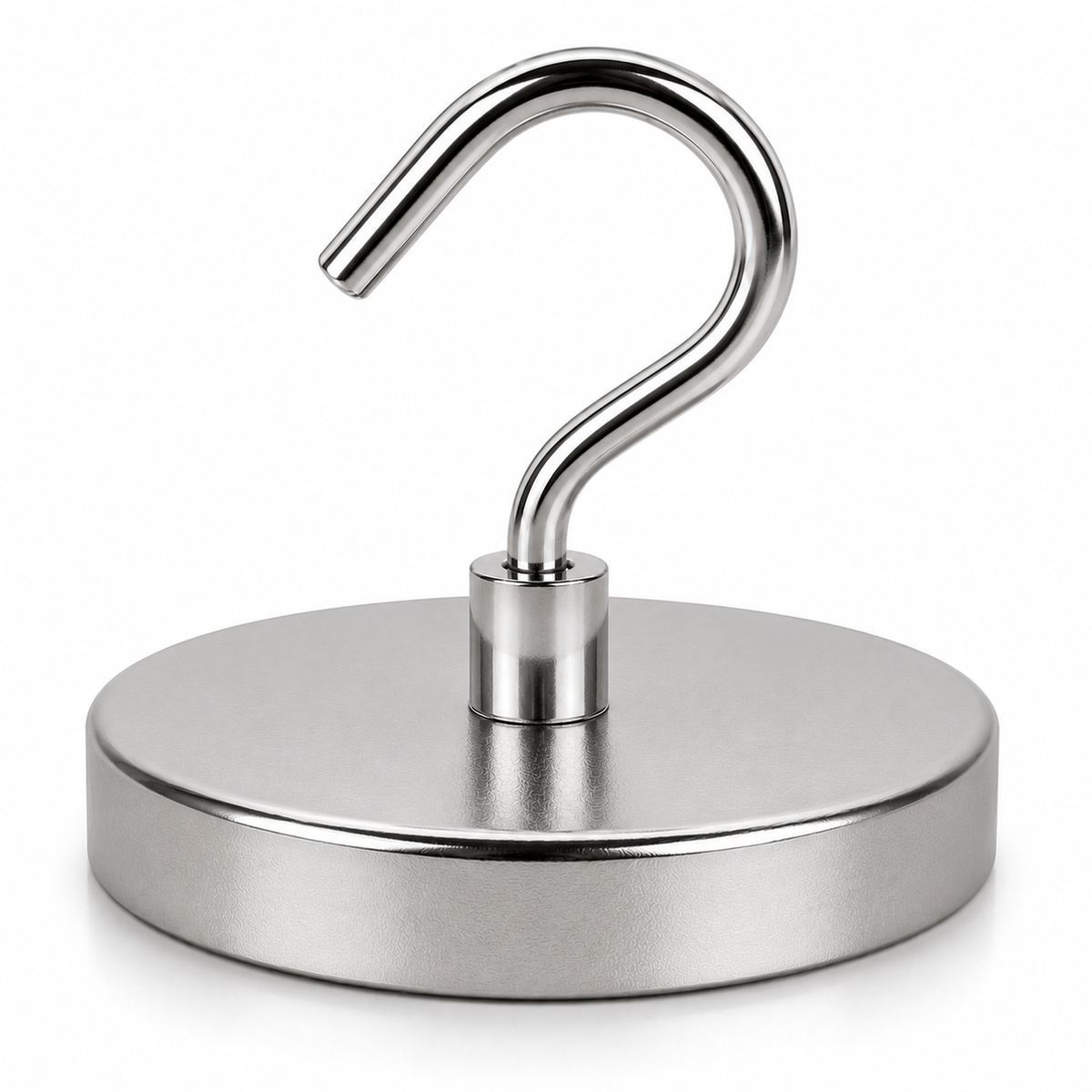

Neodymium Pot Magnet with Threaded Hook - 75mm diameter x 98mm

Product code: AMFYPE75

$137.94for 1 to 9 items
$103.36buy 10 to 99 itemsand save 25%
$88.85buy 100+ itemsand save 35%

Prices are GST Incl.

Volume pricing available on request

Neodymium Pot Magnet with Threaded Hook - 75mm diameter x 98mm

Product Code AMFYPE75
Pull Force* 164kg
Weight 560 gm
Style Rare earth threaded hook pot magnet
Coating Nickel (NiCuNi)
Direction of Magnetisation Axially magnetised thru the 18mm
*Measured against up to 10mm mild steel.
Neodymium Pot Magnet with Threaded Hook - 75mm diameter x 98mm

Magnetic Product Description:

This rare earth threaded hook pot magnet has a pull force of 164kg and a weight of 560 grams. It has a diameter of 75mm, a total height of 98mm and a magnet housing thickness of 18mm and an M10 thread with a 7mm hook. It is identified by the AMF magnet part number AMFYPE75.


Uses for our rare earth threaded hook pot magnets:

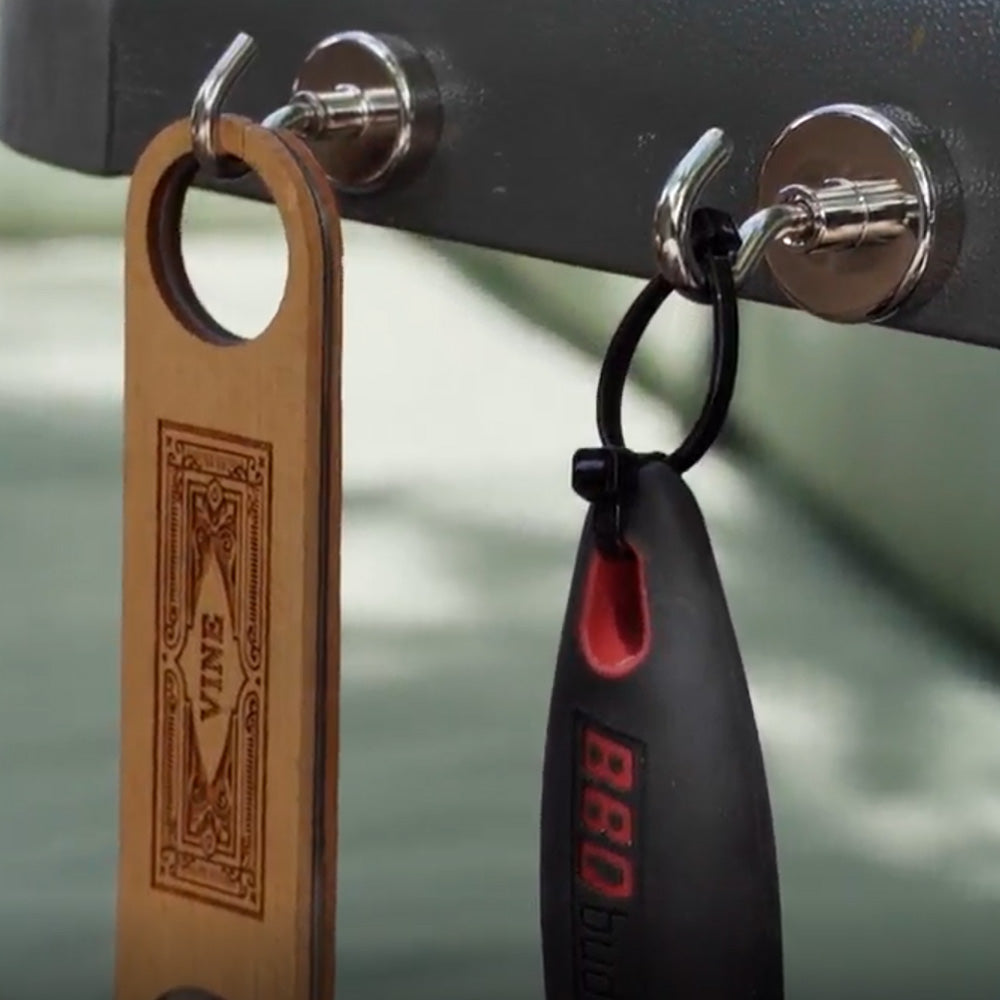

Able to be attached to any ferrous metallic surface, our Neodymium Holding Pot Magnets come with a threaded hook and are a versatile piece of equipment appropriate for use in the warehouse, office or worksite. They are able to magnetically adhere to shipping containers, metal gates, walkways, light poles, scaffolds and make it possible to temporarily support and hang lighting, electrical cabling, public address systems and signage. The steel housing on the upper side of the magnet concentrates the magnetic force to the active face of the magnet and greatly increases its strength and holding ability. The capping also protects the magnet from damage due to impact or corrosive elements which enables this type of magnet to be repeatedly removed, reused and relocated as often as is required.

ModelNo. M H h TH Holding force(kg) Weight (g)
AMFYPE16 16 4 13 5 37 5.5 11
AMFYPE20 20 4 15 7 37 9 21
AMFYPE25 25 5 17 8 42 22 37
AMFYPE32 32 6 18 8 47  34 56
AMFYPE36 36 6 18 8 47 41 68
AMFYPE42 42 5 or 6 20 9 47 68 97
AMFYPE48 48 8 24 11.5 70 81 154
AMFYPE60 60 8 30 15 70 113 282
AMFYPE75 75 10 34 18 98 164 560

Neodymium Pot Magnet with Threaded Hook - 75mm diameter x 98mm (AMFYPE75)

Grade
N35 N/A
Max Operating Temperature °C
<=80 N/A
Remanence Br(T)
1.18-1.25 N/A
Remanence Br(kGs)
11.8-12.5>=859 N/A
Coercivity bHc(kA/m)
>=10.8 N/A
Coercivity bHc(Oe)
>=955 N/A
Intrinsic Coercivity iHc(kA/m)
>=12 N/A
Intrinsic Coercivity iHc(Oe)
263-294 N/A
Max Energy Product(BH)max(KJ/m)
33-37 N/A
Grade N35 N/A
Max Operating Temperature °C <=80 N/A
Remanence Br(T) 1.18-1.25 N/A
Remanence Br(kGs) 11.8-12.5>=859 N/A
Coercivity bHc(kA/m) >=10.8 N/A
Coercivity bHc(Oe) >=955 N/A
Intrinsic Coercivity iHc(kA/m) >=12 N/A
Intrinsic Coercivity iHc(Oe) 263-294 N/A
Max Energy Product(BH)max(KJ/m) 33-37 N/A

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
