Neodymium Pot Magnet with M10 Male Thread - D48mm x 24mm (TH) | 12.5mm External Boss
Product code: AMFYPC48/10
Australia's Leading Supplier
30 Day Returns Policy
ISO 9001 and HACCP Certified

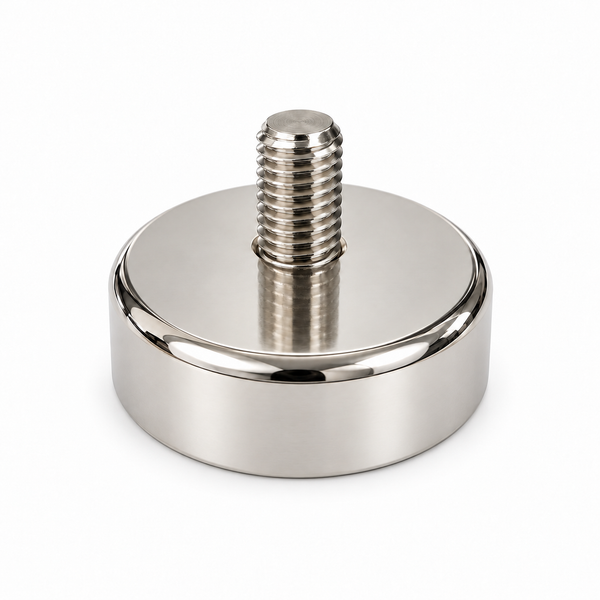

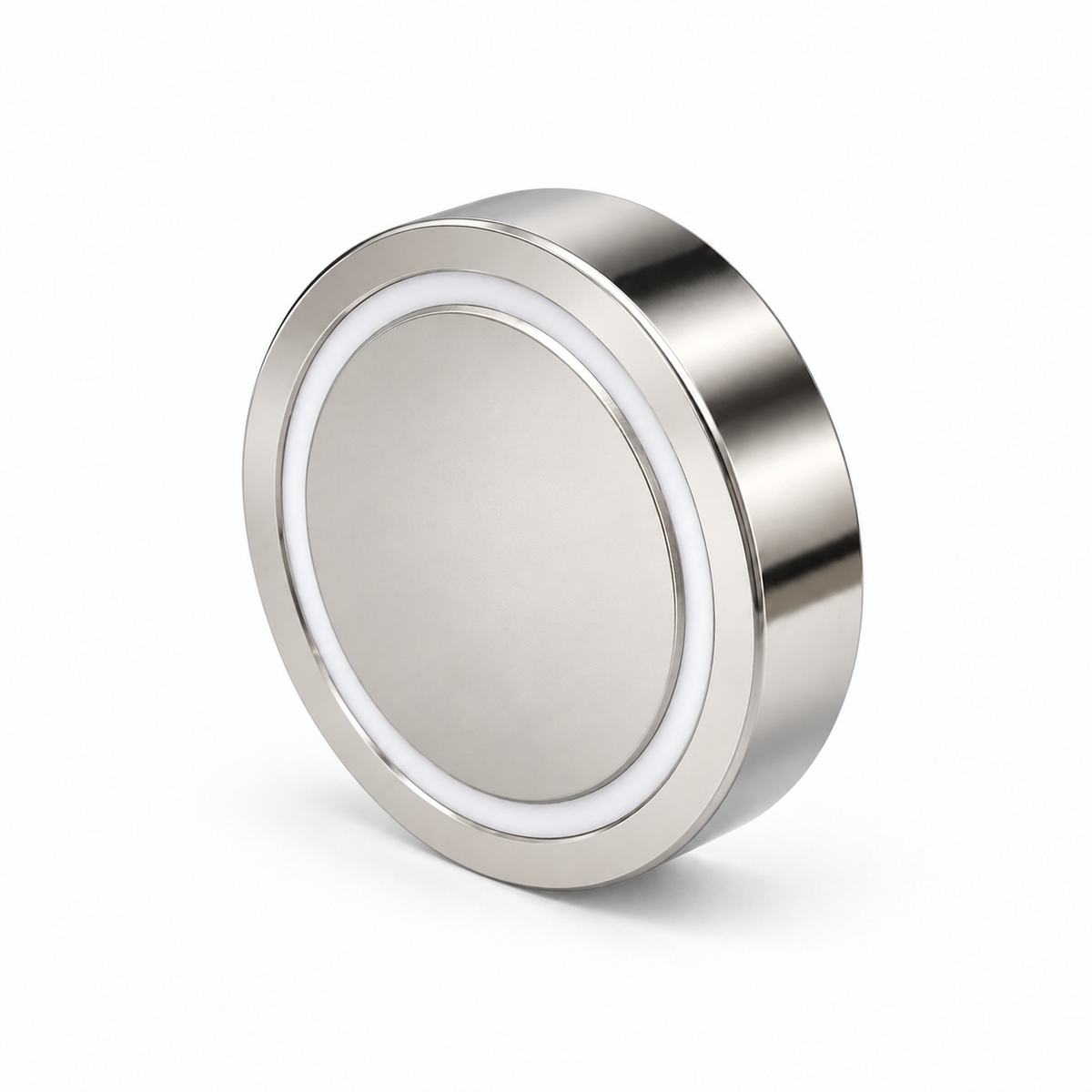

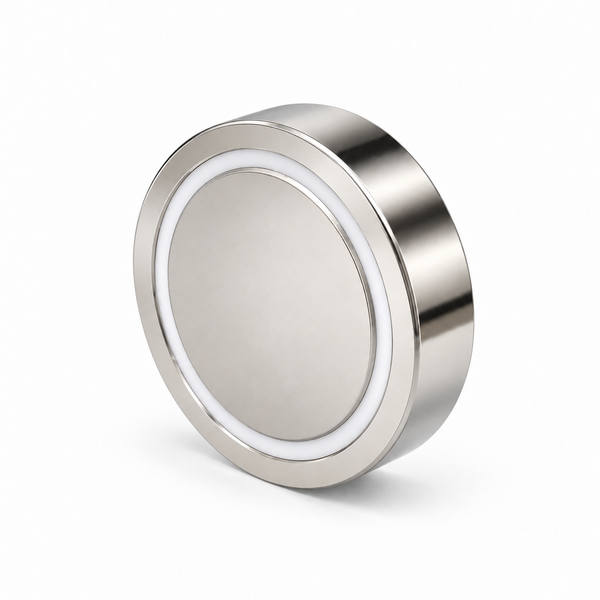

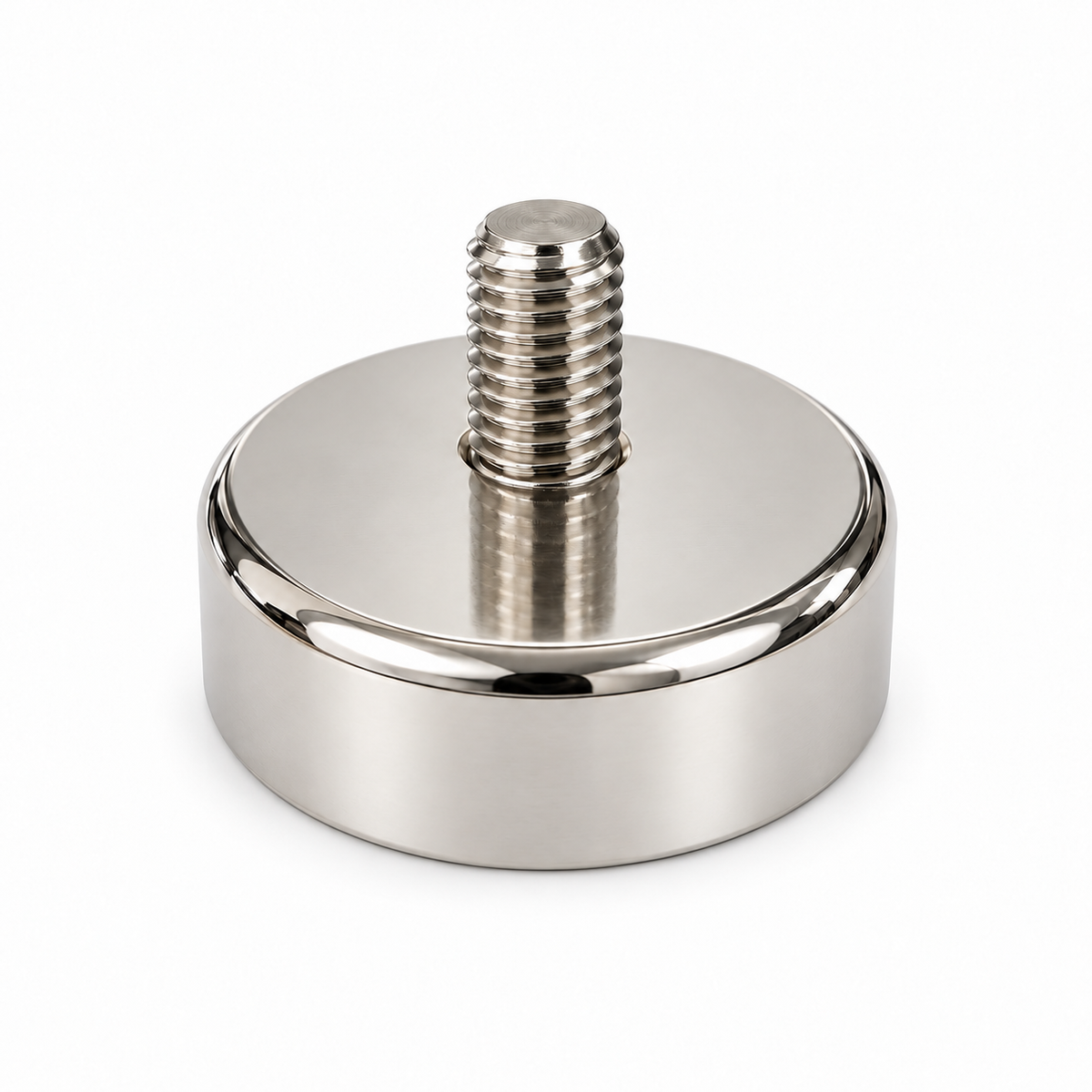

Neodymium Pot Magnet with M10 Male Thread – D48mm x 24mm Total Height
The Neodymium Pot Magnet with M10 Male Thread provides strong Rare Earth magnetic holding with a convenient threaded connection for brackets, fixtures and compatible accessories. With a 48mm diameter and a stated 81kg pull force, this compact pot magnet offers a removable mounting solution for suitable steel surfaces.
The magnet measures 24mm in total height, comprising an 11.5mm-thick housing and a 12.5mm external M10 threaded boss. Its male thread connects to compatible female-threaded fittings or can be secured through a suitable mounting hole using an appropriate nut.
Weighing 130 grams, this male threaded pot magnet is identified by AMF Magnetics part number AMFYPC48/10.
Key Features
-
Neodymium Rare Earth magnet: Powerful magnetic holding in a compact pot assembly.
-
81kg stated pull force: Strong direct-pull performance under suitable contact conditions.
-
M10 male thread: Provides an attachment point for compatible brackets, fittings and mounting hardware.
-
12.5mm external threaded boss: Extends above the housing for connection to accessories.
-
48mm diameter: A practical size for mounting arrangements with limited space.
-
Removable attachment: Allows repositioning on suitable steel without drilling into the contact surface.
Applications
This 48mm neodymium pot magnet with M10 male thread is suitable for workshop, display, fabrication and general mounting tasks, including:
-
Attaching brackets and fixtures to steel panels and frameworks.
-
Creating repositionable signage and display mounts.
-
Holding components during assembly and positioning.
-
Building magnetic mounting systems with compatible M10 fittings.
-
Securing removable accessories to steel benches and equipment housings.
Choose mounting hardware to suit the application, available thread engagement and direction of loading.
Specifications
-
Product type: Neodymium pot magnet with male thread
-
Magnetic material: Neodymium Rare Earth
-
Diameter: 48mm
-
Total height, including threaded boss: 24mm
-
Magnet housing thickness: 11.5mm
-
Thread size: M10
-
External threaded boss height: 12.5mm
-
Stated pull force: 81kg
-
Weight: 130g
-
AMF part number: AMFYPC48/10
Handling & Performance
The 81kg pull force is not a safe working load. Actual holding performance depends on steel thickness and grade, surface condition, contact area, air gaps and load direction. Painted, curved or uneven surfaces can reduce magnetic contact, while sideways loading can cause sliding at substantially lower loads.
Handle carefully to avoid pinching fingers or allowing the magnet to snap against steel or other magnets. Neodymium magnets are brittle by nature and can chip or fracture under impact. Test the complete mounting arrangement under actual operating conditions before use.
Frequently Asked Questions
Does the 24mm total height include the threaded boss?
Yes. The 11.5mm housing and 12.5mm external threaded boss combine to give a total height of 24mm.
What accessories fit the M10 male thread?
Use compatible M10 female-threaded fittings, or secure the stud through a suitable mounting hole with an appropriate nut. Confirm thread pitch and fitting compatibility before assembly.
Can this magnet support 81kg on a vertical steel surface?
The stated pull force should not be treated as a vertical wall holding rating. Sideways loads depend on resistance to sliding as well as magnetic attraction, so the usable holding capacity may be substantially lower.
What is the AMF product code?
The AMF Magnetics part number is AMFYPC48/10.
| Product Code | DØ (mm) | M (mm) | H (mm) | h (mm) | Thread Pitch (mm) | Screw Length/Boss Height (mm) | Pull Force (kg) | Weight (g) |
| AMFYPC10 | 10 | 3 | 12 | 5 | 0.5 | 7 | 2.2 | 3.5 |
| AMFYPC12 | 12 | 3 | 13 | 5 | 0.5 | 8 | 3.2 | 5 |
| AMFYPC16 | 16 | 4 | 13 | 5 | 0.7 | 8 | 5.5 | 7.5 |
| AMFYPC20 | 20 | 4 | 15 | 7 | 0.7 | 8 | 9 | 16 |
| AMFYPC25 | 25 | 5 | 17 | 8 | 0.8 | 9 | 22 | 30 |
| AMFYPC32 | 32 | 6 | 18 | 8 | 1 | 10 | 34 | 45 |
| AMFYPC32h7 | 32 | 6 | 15 | 8 | 1 | 7 | 34 | 46 |
| AMFYPC32h15 | 32 | 6 | 23 | 7 | 1 | 15 | 34 | 47 |
| AMFYPC32H25 | 32 | 6 | 33 | 8 | 1 | 25 | 34 | 48 |
| AMFYPC36 | 36 | 6 | 18 | 8 | 1 | 10 | 41 | 57 |
| AMFYPC36H25 | 36 | 6 | 33 | 8 | 1 | 25 | 41 | 60 |
| AMFYPC42 | 42 | 6 | 20 | 9 | 1 | 11 | 68 | 84 |
| AMFYPC42H25 | 42 | 8 | 34 | 9 | 1.25 | 25 | 68 | 91 |
| AMFYPC42/8 | 42 | 8 | 20 | 9 | 1.25 | 11 | 68 | 84 |
| AMFYPC48 | 48 | 8 | 24 | 11.5 | 1.25 | 12.5 | 81 | 130 |
| AMFYPC48H25 | 48 | 8 | 35.5 | 11.5 | 1.25 | 25 | 81 | 134.5 |
| AMFYPC60 | 60 | 8 | 30 | 15 | 1.25 | 15 | 113 | 254 |
| AMFYPC60H25 | 60 | 8 | 40 | 15 | 1.25 | 25 | 113 | 257.7 |
| AMFYPC75 | 75 | 10 | 34 | 15 | 1.50 | 19 | 164 | 550 |
| AMFYPC75H25 | 75 | 10 | 43 | 18 | 1.50 | 25 | 164 | 555.8 |
No FAQ available
NB: Ranges are indicative for product category, please check individual products for specic values within that range.
The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.
Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.
Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
