Neodymium Pot Magnet with M10 Male Thread - D60mm x 30mm (TH) | 15mm External Boss
Product code: AMFYPC60/10
Australia's Leading Supplier
30 Day Returns Policy
ISO 9001 and HACCP Certified

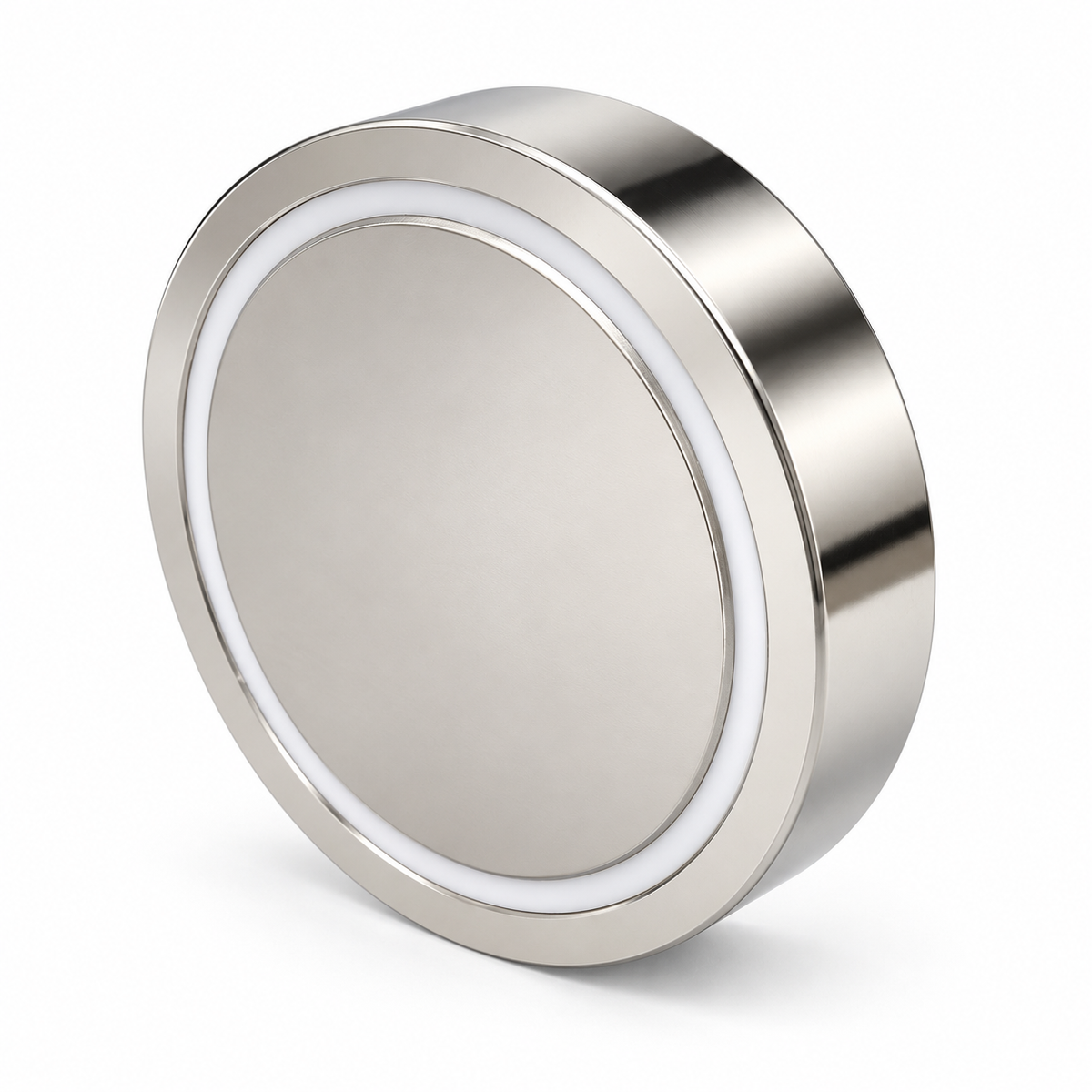

Neodymium Pot Magnet with M10 Male Thread – D60mm x 30mm Total Height
The Neodymium Pot Magnet with M10 Male Thread provides powerful magnetic holding with a convenient threaded attachment point for brackets, fixtures and compatible accessories. With a 60mm diameter and a stated 113kg pull force, this Rare Earth pot magnet is suitable for applications requiring strong, removable attachment to suitable steel surfaces.

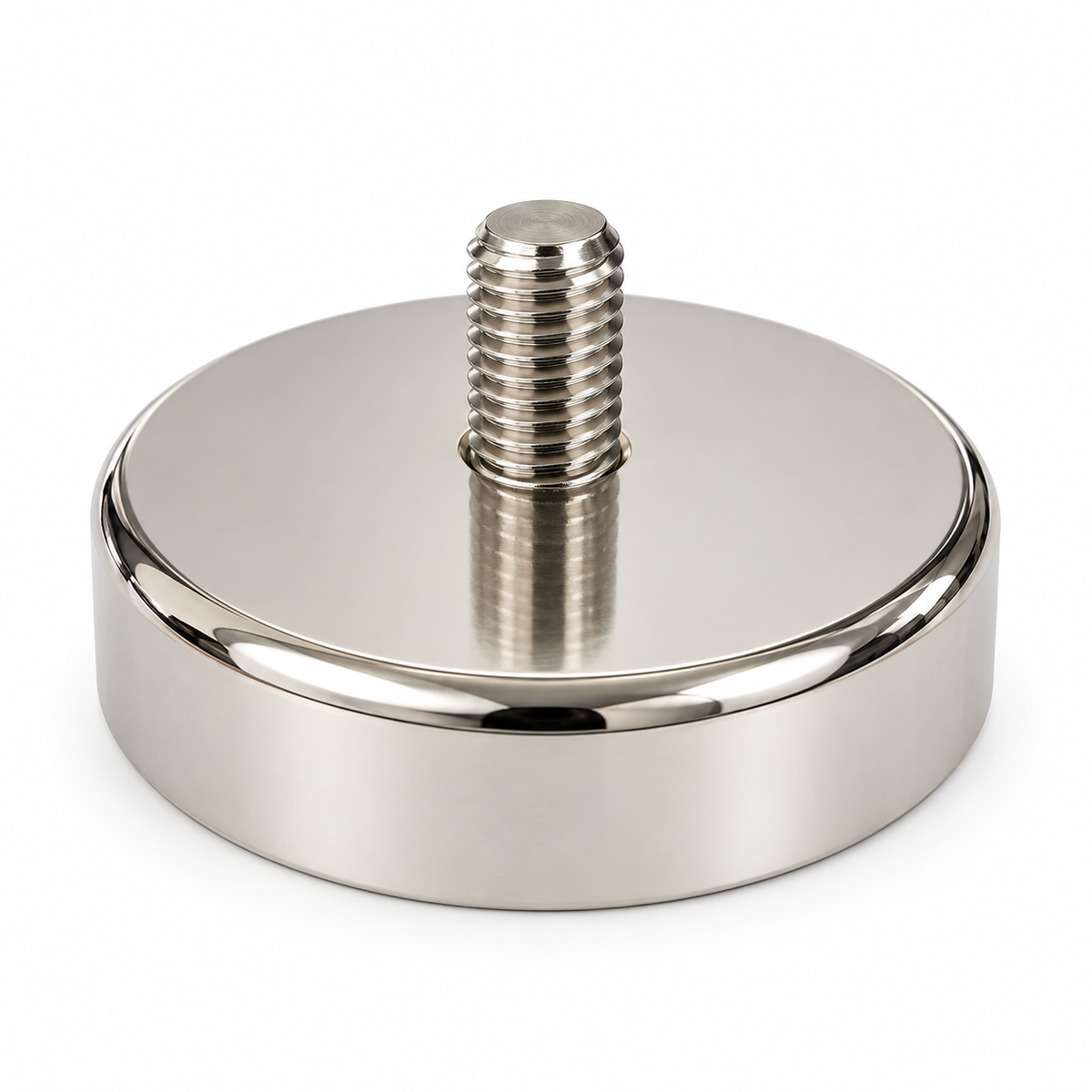

The assembly measures 30mm in total height, comprising a 15mm-thick magnet housing and a 15mm external M10 threaded boss. The male thread connects to compatible M10 female-threaded components or can be secured through a suitable mounting hole using an appropriate nut.
Weighing 254 grams, this magnet is identified by AMF Magnetics part number AMFYPC60/10.
Key Features
-
Strong Rare Earth magnet: Neodymium magnetic performance in a compact pot assembly.
-
113kg stated pull force: Powerful holding against suitable steel under appropriate conditions.
-
M10 male thread: Provides a practical connection for compatible fittings and mounting components.
-
15mm external threaded boss: Extends above the housing for attachment.
-
60mm diameter housing: Offers a broad contact footprint.
-
Removable mounting: Allows repositioning without drilling into the steel contact surface.
Applications
This 60mm male threaded pot magnet is suited to workshop, fabrication, display and general mounting applications, including:
-
Attaching compatible brackets and fixtures to steel surfaces.
-
Creating repositionable signage and display mounts.
-
Holding components during assembly or positioning tasks.
-
Building magnetic mounting systems with M10-compatible accessories.
-
Securing removable fittings to steel benches, panels and frameworks.
Select mounting hardware to suit the application, load direction and contact surface.
Specifications
-
Product type: Neodymium pot magnet with male thread
-
Magnetic material: Neodymium Rare Earth
-
Diameter: 60mm
-
Total height, including threaded boss: 30mm
-
Magnet housing thickness: 15mm
-
Thread size: M10
-
External threaded boss height: 15mm
-
Stated pull force: 113kg
-
Weight: 254g
-
AMF part number: AMFYPC60/10
Handling & Performance
The 113kg pull force is not a safe working load. Actual holding performance depends on the steel’s thickness and grade, surface condition, contact area, air gaps and direction of loading. Paint, uneven surfaces and sideways loading can reduce holding capacity.
Handle carefully to avoid pinching fingers or allowing the magnet to snap against steel or other magnets. Neodymium magnets are brittle by nature and can chip or fracture under impact, even when housed in a pot assembly. Test the complete mounting arrangement under actual operating conditions before use.
Frequently Asked Questions
Does the 30mm total height include the threaded boss?
Yes. The total height comprises the 15mm magnet housing and the 15mm external threaded boss.
What fittings are compatible with the male thread?
The magnet has an M10 male thread for compatible M10 female-threaded fittings or attachment through a suitable hole with an appropriate nut. Confirm thread pitch and fitting compatibility before assembly.
Can this magnet hold 113kg on a vertical wall?
The stated pull force should not be used as a vertical wall holding rating. A wall-mounted load acts sideways across the contact surface, where sliding resistance and actual holding capacity can be substantially lower.
What is the product code?
The AMF Magnetics part number is AMFYPC60/10.
| Product Code | DØ (mm) | M (mm) | H (mm) | h (mm) | Thread Pitch (mm) | Screw Length/Boss Height (mm) | Pull Force (kg) | Weight (g) |
| AMFYPC10 | 10 | 3 | 12 | 5 | 0.5 | 7 | 2.2 | 3.5 |
| AMFYPC12 | 12 | 3 | 13 | 5 | 0.5 | 8 | 3.2 | 5 |
| AMFYPC16 | 16 | 4 | 13 | 5 | 0.7 | 8 | 5.5 | 7.5 |
| AMFYPC20 | 20 | 4 | 15 | 7 | 0.7 | 8 | 9 | 16 |
| AMFYPC25 | 25 | 5 | 17 | 8 | 0.8 | 9 | 22 | 30 |
| AMFYPC32 | 32 | 6 | 18 | 8 | 1 | 10 | 34 | 45 |
| AMFYPC32h7 | 32 | 6 | 15 | 8 | 1 | 7 | 34 | 46 |
| AMFYPC32h15 | 32 | 6 | 23 | 7 | 1 | 15 | 34 | 47 |
| AMFYPC32H25 | 32 | 6 | 33 | 8 | 1 | 25 | 34 | 48 |
| AMFYPC36 | 36 | 6 | 18 | 8 | 1 | 10 | 41 | 57 |
| AMFYPC36H25 | 36 | 6 | 33 | 8 | 1 | 25 | 41 | 60 |
| AMFYPC42 | 42 | 6 | 20 | 9 | 1 | 11 | 68 | 84 |
| AMFYPC42H25 | 42 | 8 | 34 | 9 | 1.25 | 25 | 68 | 91 |
| AMFYPC42/8 | 42 | 8 | 20 | 9 | 1.25 | 11 | 68 | 84 |
| AMFYPC48 | 48 | 8 | 24 | 11.5 | 1.25 | 12.5 | 81 | 130 |
| AMFYPC48H25 | 48 | 8 | 35.5 | 11.5 | 1.25 | 25 | 81 | 134.5 |
| AMFYPC60 | 60 | 8 | 30 | 15 | 1.25 | 15 | 113 | 254 |
| AMFYPC60H25 | 60 | 8 | 40 | 15 | 1.25 | 25 | 113 | 257.7 |
| AMFYPC75 | 75 | 10 | 34 | 15 | 1.50 | 19 | 164 | 550 |
| AMFYPC75H25 | 75 | 10 | 43 | 18 | 1.50 | 25 | 164 | 555.8 |
No FAQ available
NB: Ranges are indicative for product category, please check individual products for specic values within that range.
The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.
Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.
Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
