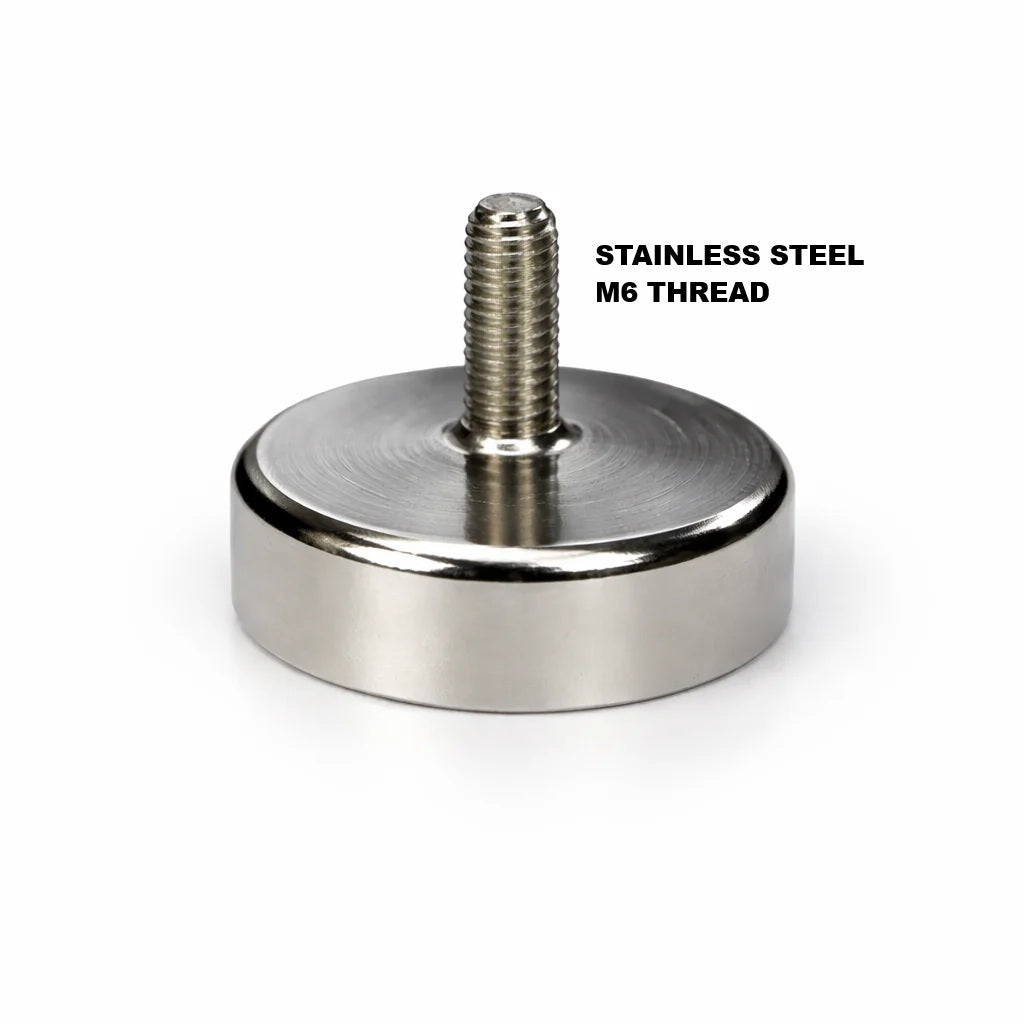

Stainless Steel Neodymium Pot Magnet with M6 Male Thread - D25mm x 17mm | 9mm External Boss
Product code: AMFYPC25/SS
Prices are GST Incl.
Request a Quote for Bulk OrdersAustralia's Leading Supplier
30 Day Returns Policy
ISO 9001 and HACCP Certified
This Stainless Steel Neodymium Male Threaded Pot Magnet combines the exceptional holding power of a rare earth neodymium magnet with the durability and corrosion resistance of a stainless steel cup. Designed for demanding commercial, industrial and outdoor applications, it provides a strong, reliable magnetic mounting solution where conventional magnets may deteriorate over time.
The magnet features a 25mm diameter magnetic base, an overall height of 17mm, and an 8mm-thick stainless steel housing. An M6 male threaded stud with a 9mm external boss allows for fast and secure attachment to brackets, fixtures, machinery, hooks, eye bolts and custom assemblies.
Despite weighing only 30 grams, this permanent magnet delivers an impressive 12kg maximum pull force under ideal conditions when attached to a clean, thick, flat steel surface.
Key Features
- Powerful rare earth Neodymium (NdFeB) magnet
- Corrosion-resistant stainless steel pot housing
- 25mm diameter magnetic base
- 17mm overall height
- 8mm housing thickness
- M6 male threaded stud with 9mm external boss
- Up to 12kg pull force under ideal conditions
- Lightweight design at just 30g
- Permanent magnet requiring no power source
- Concentrated magnetic field for maximum holding performance
Applications
This stainless steel male threaded pot magnet is ideal wherever a strong, removable magnetic fixing point is required. The threaded stud makes installation quick and allows the magnet to be securely mounted to fabricated components, brackets, machinery or custom fixtures.
Common applications include:
- Industrial equipment and machinery
- Manufacturing and automation
- Signage and display systems
- Workshop jigs and fixtures
- Lighting installations
- Marine and coastal applications
- Outdoor mounting systems
- Food processing equipment
- Medical and laboratory environments
- Retail displays and point-of-sale fixtures
- Maintenance and engineering projects
- DIY and custom fabrication
Why Choose a Stainless Steel Pot Magnet?
The stainless steel housing provides excellent resistance to corrosion, moisture and harsh operating environments, making this magnet particularly well suited for both indoor and outdoor use. Unlike standard steel housings that may rust when exposed to the elements, stainless steel helps maintain the magnet's appearance and performance in humid, wet or corrosive conditions.
The stainless steel cup also protects the internal neodymium magnet from impact while concentrating the magnetic field through the base to maximise holding strength.
Because stainless steel offers excellent hygiene properties and is easy to clean, these magnets are also popular in industries where cleanliness and contamination control are essential, including food production, commercial kitchens, pharmaceutical manufacturing and medical environments.
How Male Threaded Pot Magnets Work
This magnet is magnetised through its base, creating a concentrated magnetic field on the flat mounting surface. The integrated M6 male thread allows the magnet to be fastened directly into threaded components or secured using matching nuts and hardware, creating a strong, reusable magnetic mounting point without permanent drilling or welding.
For maximum performance, always use the magnet against a clean, smooth, thick ferrous steel surface. Pull force will be reduced on painted, uneven, thin or coated steel surfaces, or where an air gap exists between the magnet and the steel.
| Product Code | DØ (mm) | M (mm) | H (mm) | h (mm) | Thread Pitch (mm) | Screw Length/Boss Height (mm) | Pull Force (kg) | Weight (g) |
| AMFYPC10 | 10 | 3 | 12 | 5 | 0.5 | 7 | 2.2 | 3.5 |
| AMFYPC12 | 12 | 3 | 13 | 5 | 0.5 | 8 | 3.2 | 5 |
| AMFYPC16 | 16 | 4 | 13 | 5 | 0.7 | 8 | 5.5 | 7.5 |
| AMFYPC20 | 20 | 4 | 15 | 7 | 0.7 | 8 | 9 | 16 |
| AMFYPC25 | 25 | 5 | 17 | 8 | 0.8 | 9 | 22 | 30 |
| AMFYPC25/SS | 25 | 6 | 17 | 8 | 0.8 | 9 | 12 | 30 |
| AMFYPC32 | 32 | 6 | 18 | 8 | 1 | 10 | 34 | 45 |
| AMFYPC32h7 | 32 | 6 | 15 | 8 | 1 | 7 | 34 | 46 |
| AMFYPC32h15 | 32 | 6 | 23 | 7 | 1 | 15 | 34 | 47 |
| AMFYPC32H25 | 32 | 6 | 33 | 8 | 1 | 25 | 34 | 48 |
| AMFYPC36 | 36 | 6 | 18 | 8 | 1 | 10 | 41 | 57 |
| AMFYPC36H25 | 36 | 6 | 33 | 8 | 1 | 25 | 41 | 60 |
| AMFYPC42 | 42 | 6 | 20 | 9 | 1 | 11 | 68 | 84 |
| AMFYPC42H25 | 42 | 8 | 34 | 9 | 1.25 | 25 | 68 | 91 |
| AMFYPC42/8 | 42 | 8 | 20 | 9 | 1.25 | 11 | 68 | 84 |
| AMFYPC48 | 48 | 8 | 24 | 11.5 | 1.25 | 12.5 | 81 | 130 |
| AMFYPC48H25 | 48 | 8 | 35.5 | 11.5 | 1.25 | 25 | 81 | 134.5 |
| AMFYPC60 | 60 | 8 | 30 | 15 | 1.25 | 15 | 113 | 254 |
| AMFYPC60H25 | 60 | 8 | 40 | 15 | 1.25 | 25 | 113 | 257.7 |
| AMFYPC75 | 75 | 10 | 34 | 15 | 1.50 | 19 | 164 | 550 |
| AMFYPC75H25 | 75 | 10 | 43 | 18 | 1.50 | 25 | 164 | 555.8 |
No FAQ available
NB: Ranges are indicative for product category, please check individual products for specic values within that range.
The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.
Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.
Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
